Carbon Steel Straight Elbow Tee Metric Bite Type Hydraulic Tube Fittings
Metric bite type hydraulic tube fittings also called metric tube fittings with 24°cone, it meets metric 2353 standard. And they are most frequently found in hydraulic and pneumatic applications in construction equipment, oil and gas, automotive, aerospace, shipbuilmetricg and industrial equipment.
The one benefit is their small size, which makes them suitable for usage in confined areas and lowers the hydraulic system's total dimensions. They are also simple to put together and take apart, and they have a high vibration resistance.
Description

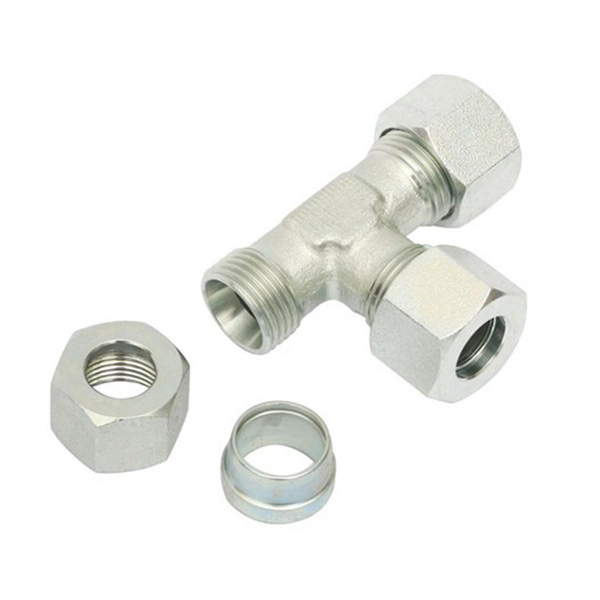

Metric bite type tube fitting, are made with a bite ring that, when tightened, bites into the tube's exterior to provide a solid and impermeable connection. The body, cutting ring (ferrule) and nut are the three parts that make up the fitting.
Metric bite type tube fittings are made in carbon steel and stainless steel, with metric O.D. sizes ranging from 6mm to 38mm. Tube-to-tube, tube-to-female port, and tube-to-male thread are the three types of tube port end connectors.
NJ offer various metric bite type adapters in different shapes & sealing type, and the types of conversion with American and British threads as below:
Straight: union and reducer, male to male, male to female, female to female
Besides male to male metric bite type tube fittings, we also offer metric bite type to bspp with o-ring and retaining ring adapter (1CG/1DG), metric bite type to bspp with ed ring (1CB-WD/1DB-WD), metric bite type to metric o-ring and retaining ring (1CH/1DH), jic male to metric bite type (1JC/1JD), metric bite type to metric 60°cone (1CM/1DM), metric bite type to npt male (1CN/1DN), metric bite type to orb male (1CO/1DO), metric bite type to bspt male (1CT/1DT).
union or reducer
90 elbow

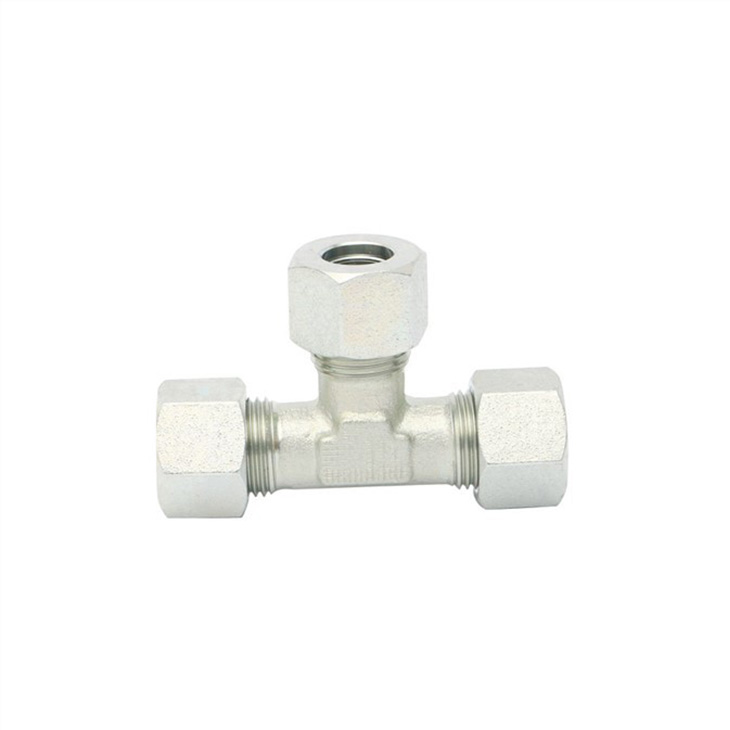

branch tee and run teeTechnical Data
1C/1D - MALE TO MALE METRIC BITE TYPE UNION
| Thread A | Thread B | Part No | L | E | H1 | ||
| Dash | DKL Metric | Dash | DKL Metric | mm | mm | mm | |
| -08LL | M08x1.0 (04LL) | -08LL | M08x1.0 (04LL) | 1C-08LL | 20 | 12 | 9 |
| -10LL | M10x1.0 (06LL) | -10LL | M10x1.0 (06LL) | 1C-10LL | 20 | 9 | 11 |
| -12LL | M12x1.0 (08LL) | -12LL | M12x1.0 (08LL) | 1C-12LL | 23 | 12 | 12 |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 1C-12 | 24 | 10 | 12 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 1C-14 | 25 | 11 | 14 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 1C-16 | 27 | 13 | 17 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 1C-18 | 28 | 14 | 19 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 1C-22 | 30 | 16 | 24 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 1C-26 | 31 | 16 | 27 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 1C-30 | 35 | 20 | 32 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 1C-36 | 36 | 21 | 41 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 1C-45 | 41 | 20 | 46 |
| -52 | M52X2 (42L) | -52 | M52X2 (42L) | 1C-52 | 43 | 21 | 55 |
| -14 | M14x1.5 (08L) | -12 | M12x1.5 (06L) | 1C-1412 | 25 | 11 | 14 |
| -16 | M16x1.5 (10L) | -12 | M12x1.5 (06L) | 1C-1612 | 26 | 12 | 17 |
| -16 | M16x1.5 (10L) | -14 | M14x1.5 (08L) | 1C-1614 | 26 | 12 | 17 |
| -18 | M18x1.5 (12L) | -12 | M12x1.5 (06L) | 1C-1812 | 27 | 13 | 19 |
| -18 | M18x1.5 (12L) | -14 | M14x1.5 (08L) | 1C-1814 | 27 | 13 | 19 |
| -18 | M18x1.5 (12L) | -16 | M16x1.5 (10L) | 1C-1816 | 28 | 14 | 19 |
| -22 | M22x1.5 (15L) | -16 | M16x1.5 (10L) | 1C-2216 | 29 | 15 | 24 |
| -22 | M22x1.5 (15L) | -18 | M18x1.5 (12L) | 1C-2218 | 29 | 15 | 24 |
| -26 | M26x1.5 (18L) | -18 | M18x1.5 (12L) | 1C-2618 | 30 | 16 | 27 |
| -26 | M26x1.5 (18L) | -22 | M22x1.5 (15L) | 1C-2622 | 31 | 17 | 27 |
| -30 | M30x2 (22L) | -22 | M22x1.5 (15L) | 1C-3022 | 33 | 19 | 32 |
| -30 | M30x2 (22L) | -26 | M26x1.5 (18L) | 1C-3026 | 33 | 19 | 32 |
| -36 | M36x2 (28L) | -26 | M26x1.5 (18L) | 1C-3626 | 34 | 19 | 41 |
| -36 | M36x2 (28L) | -30 | M30x2 (22L) | 1C-3630 | 36 | 21 | 41 |
| -45 | M45x2 (35L) | -30 | M30x2 (22L) | 1C-4530 | 39 | 21 | 46 |
1CG/1DG - METRIC BITE TYPE X BSPP MALE STRAIGHT
| Thread A | Thread B | Part No | L | L1 | F | H1 | ||
| Dash | DKL | Dash | BSPP | mm | mm | mm | mm | |
| -8 | M08x1.0(04LL) | -2 | G1/8X28 | 1CG-0802LL | 24 | 18 | 8 | 14 |
| -10 | M10x1.0(06LL) | -2 | G1/8X28 | 1CG-1002LL | 24 | 18 | 8 | 14 |
| -12 | M12x1.0(08LL) | -2 | G1/8X28 | 1CG-1202LL | 24 | 18 | 8 | 14 |
| -12 | M12x1.5 (06L) | -2 | G1/8X28 | 1CG-1202 | 25 | 18 | 8 | 14 |
| -12 | M12x1.5 (06L) | -4 | G1/4X19 | 1CG-1204 | 30 | 23 | 12 | 19 |
| -12 | M12x1.5 (06L) | -6 | G3/8X19 | 1CG-1206 | 31 | 24 | 12 | 22 |
| -14 | M14x1.5 (08L) | -2 | G1/8-28 | 1CG-1402 | 25 | 18 | 8 | 17 |
| -14 | M14x1.5 (08L) | -4 | G1/4X19 | 1CG-1404 | 30 | 23 | 12 | 19 |
| -14 | M14x1.5 (08L) | -6 | G3/8X19 | 1CG-1406 | 31 | 24 | 12 | 22 |
| -14 | M14x1.5 (08L) | -8 | G1/2X14 | 1CG-1408 | 34 | 27 | 14 | 27 |
| -16 | M16x1.5 (10L) | -2 | G1/8X28 | 1CG-1602 | 27 | 20 | 8 | 17 |
| -16 | M16x1.5 (10L) | -4 | G1/4X19 | 1CG-1604 | 31 | 24 | 12 | 19 |
| -16 | M16x1.5 (10L) | -6 | G3/8X19 | 1CG-1606 | 32 | 25 | 12 | 22 |
| -16 | M16x1.5 (10L) | -8 | G1/2X14 | 1CG-1608 | 35 | 28 | 14 | 27 |
| -18 | M18x1.5 (12L) | -4 | G1/4X19 | 1CG-1804 | 31 | 24 | 12 | 22 |
| -18 | M18x1.5 (12L) | -6 | G3/8X19 | 1CG-1806 | 34 | 27 | 12 | 22 |
| -18 | M18x1.5 (12L) | -8 | G1/2X14 | 1CG-1808 | 37 | 30 | 14 | 27 |
| -22 | M22x1.5 (15L) | -4 | G1/4X19 | 1CG-2204 | 33 | 26 | 12 | 24 |
| -22 | M22x1.5 (15L) | -6 | G3/8X19 | 1CG-2206 | 33 | 26 | 12 | 24 |
| -22 | M22x1.5 (15L) | -8 | G1/2X14 | 1CG-2208 | 38 | 31 | 14 | 27 |
| -22 | M22x1.5 (15L) | -12 | G3/4X14 | 1CG-2212 | 40 | 33 | 16 | 32 |
| -26 | M26x1.5 (18L) | -8 | G1/2X14 | 1CG-2608 | 36 | 29 | 14 | 27 |
| -26 | M26x1.5 (18L) | -12 | G3/4X14 | 1CG-2612 | 39 | 32 | 16 | 32 |
| -30 | M30x2 (22L) | -8 | G1/2X14 | 1CG-3008 | 39 | 32 | 14 | 32 |
| -30 | M30x2 (22L) | -12 | G3/4X14 | 1CG-3012 | 41 | 34 | 16 | 32 |
| -30 | M30x2 (22L) | -16 | G1X11 | 1CG-3016 | 46 | 38 | 18 | 41 |
| -30 | M30x2 (22L) | -20 | G1.1/4X11 | 1CG-3020 | 48 | 41 | 20 | 50 |
| -36 | M36x2 (28L) | -12 | G3/4X14 | 1CG-3612 | 45 | 37 | 16 | 38 |
| -36 | M36x2 (28L) | -16 | G1X11 | 1CG-3616 | 46 | 38 | 18 | 41 |
| -36 | M36x2 (28L) | -20 | G1.1/4X11 | 1CG-3620 | 48 | 41 | 20 | 50 |
| -45 | M45x2 (35L) | -16 | G1X11 | 1CG-4516 | 48 | 41 | 18 | 50 |
| -45 | M45x2 (35L) | -20 | G1.1/4X11 | 1CG-4520 | 48 | 38 | 20 | 50 |
| -45 | M45x2 (35L) | -24 | G1.1/2X11 | 1CG-4524 | 52 | 41 | 22 | 55 |
| -52 | M52x2 (42L) | -20 | G1.1/4X11 | 1CG-5220 | 50 | 39 | 20 | 55 |
| -52 | M52x2 (42L) | -24 | G1.1/2X11 | 1CG-5224 | 52 | 41 | 22 | 55 |
| -52 | M52x2 (42L) | -32 | G2-11 | 1CG-5232 | 22 | 70 | ||
1JC/1JD - JIC MALE X METRIC BITE TYPE STRAIGHT
| Thread A | Thread B | Part No | L | E | F | H | ||
| Dash | JIC | Dash | DKL | mm | mm | mm | mm | |
| -7 | 7/16-20 | -12 | M12x1.5 | 1JC-0712 | 31 | 14 | 10 | 14 |
| -7 | 7/16-20 | -14 | M14x1.5 | 1JC-0714 | 30 | 14 | 10 | 16 |
| -7 | 7/16-20 | -16 | M16x1.5 | 1JC-0716 | 31 | 14 | 11 | 17 |
| -9 | 9/16-18 | -12 | M12x1.5 | 1JC-0912 | 31 | 14 | 10 | 17 |
| -9 | 9/16-18 | -14 | M14x1.5 | 1JC-0914 | 31 | 14 | 10 | 17 |
| -9 | 9/16-18 | -16 | M16x1.5 | 1JC-0916 | 31 | 14 | 11 | 17 |
| -9 | 9/16-18 | -18 | M18x1.5 | 1JC-0918 | 32 | 14 | 11 | 19 |
| -9 | 9/16-18 | -22 | M22x1.5 | 1JC-0922 | 35 | 14 | 12 | 24 |
| -12 | 3/4-16 | -14 | M14x1.5 | 1JC-1214 | 34 | 17 | 10 | 22 |
| -12 | 3/4-16 | -16 | M16x1.5 | 1JC-1216 | 35 | 17 | 11 | 22 |
| -12 | 3/4-16 | -18 | M18x1.5 | 1JC-1218 | 35 | 17 | 11 | 22 |
| -12 | 3/4-16 | -22 | M22x1.5 | 1JC-1222 | 38 | 17 | 12 | 24 |
| -14 | 7/8-14 | -18 | M18x1.5 | 1JC-1418 | 40 | 19 | 11 | 24 |
| -14 | 7/8-14 | -22 | M22x1.5 | 1JC-1422 | 41 | 19 | 12 | 24 |
| -14 | 7/8-14 | -26 | M26x1.5 | 1JC-1426 | 42 | 19 | 12 | 27 |
| -17 | 1.1/16-12 | -18 | M18x1.5 | 1JC-1718 | 42 | 22 | 11 | 30 |
| -17 | 1.1/16-12 | -22 | M22x1.5 | 1JC-1722 | 43 | 22 | 12 | 30 |
| -17 | 1.1/16-12 | -26 | M26x1.5 | 1JC-1726 | 43 | 22 | 12 | 30 |
| -17 | 1.1/16-12 | -30 | M30x2.0 | 1JC-1730 | 47 | 22 | 14 | 32 |
| -21 | 1.5/16-12 | -36 | M36x2.0 | 1JC-2136 | 48 | 23 | 14 | 41 |
| -26 | 1.5/8-12 | -45 | M45x2.0 | 1JC-2645 | 53 | 24 | 16 | 46 |
| -30 | 1.7/8-12 | -52 | M52x2.0 | 1JC-3052 | 58 | 27 | 16 | 60 |
1CN/1DN - METRIC BITE TYPE X NPT MALE STRAIGHT
| Thread A | Thread B | Part No | L | L2 | F | H1 | ||
| Dash | DKL | Dash | NPT | mm | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -2 | 1/8x27 | 1CN-1202 | 24 | 17 | 10 | 12 |
| -12 | M12x1.5 (06L) | -4 | 1/4x18 | 1CN-1204 | 30 | 23 | 15 | 17 |
| -14 | M14x1.5 (08L) | -4 | 1/4x18 | 1CN-1404 | 30 | 23 | 15 | 17 |
| -14 | M14x1.5 (08L) | -6 | 3/8x18 | 1CN-1406 | 30 | 23 | 15 | 19 |
| -16 | M16x1.5 (10L) | -2 | 1/8x27 | 1CN-1602 | 25 | 18 | 10 | 17 |
| -16 | M16x1.5 (10L) | -4 | 1/4x18 | 1CN-1604 | 31 | 24 | 15 | 17 |
| -16 | M16x1.5 (10L) | -6 | 3/8x18 | 1CN-1606 | 32 | 25 | 15 | 19 |
| -18 | M18x1.5 (12L) | -4 | 1/4x18 | 1CN-1804 | 32 | 25 | 15 | 19 |
| -18 | M18x1.5 (12L) | -6 | 3/8x18 | 1CN-1806 | 32 | 25 | 15 | 19 |
| -18 | M18x1.5 (12L) | -8 | 1/2x14 | 1CN-1808 | 37 | 30 | 20 | 22 |
| -22 | M22x1.5 (15L) | -6 | 3/8x18 | 1CN-2206 | 33 | 26 | 15 | 24 |
| -22 | M22x1.5 (15L) | -8 | 1/2x14 | 1CN-2208 | 38 | 31 | 20 | 24 |
| -26 | M26x1.5 (18L) | -6 | 3/8x18 | 1CN-2606 | 34 | 27 | 15 | 27 |
| -26 | M26x1.5 (18L) | -8 | 1/2x14 | 1CN-2608 | 39 | 32 | 20 | 27 |
| -26 | M26x1.5 (18L) | -12 | 3/4x14 | 1CN-2612 | 39 | 32 | 20 | 30 |
| -30 | M30x2 (22L) | -8 | 1/2x14 | 1CN-3008 | 41 | 34 | 20 | 32 |
| -30 | M30x2 (22L) | -12 | 3/4x14 | 1CN-3012 | 41 | 34 | 20 | 32 |
| -30 | M30x2 (22L) | -16 | 1x11.5 | 1CN-3016 | 47 | 40 | 25 | 36 |
| -36 | M36x2 (28L) | -16 | 1x11.5 | 1CN-3616 | 47 | 40 | 25 | 41 |
| -36 | M36x2 (28L) | -20 | 1.1/4x11.5 | 1CN-3620 | 49 | 42 | 25 | 46 |
| -45 | M45x2 (35L) | -20 | 1.1/4x11.5 | 1CN-4520 | 51 | 14 | 25 | 46 |
| -52 | M52x2 (42L) | -24 | 1.1/2x11.5 | 1CN-5224 | 53 | 42 | 26 | 55 |
1CT/1DT - METRIC BITE TYPE X BSPT MALE STRAIGHT
| Thread A | Thread B | Part No | L | L2 | F | H1 | ||
| Dash | DKL | Dash | BSPT | mm | mm | mm | mm | |
| -8 | 8x1.0 | -2 | 2001/8/28 | 1CT-0802LL | 22 | 18 | 10 | 12 |
| -10 | 10x1.0 | -2 | 2001/8/28 | 1CT-1002LL | 22 | 17 | 10 | 12 |
| -12 | 12x1.0 | -2 | 1/8-28 | 1CT-1202LL | 26 | 21 | 10 | 12 |
| -12 | M12x1.5 (06L) | -2 | 1/8x28 | 1CT-1202 | 28 | 21 | 10 | 12 |
| -12 | M12x1.5 (06L) | -4 | 1/4x19 | 1CT-1204 | 32 | 25 | 15 | 14 |
| -14 | M14x1.5 (08L) | -2 | 1/8x28 | 1CT-1402 | 27 | 20 | 10 | 17 |
| -14 | M14x1.5 (08L) | -4 | 1/4x19 | 1CT-1404 | 32 | 25 | 15 | 17 |
| -14 | M14x1.5 (08L) | -6 | 3/8x19 | 1CT-1406 | 34 | 27 | 15 | 19 |
| -16 | M16x1.5 (10L) | -2 | 1/8x28 | 1CT-1602 | 27 | 20 | 10 | 17 |
| -16 | M16x1.5 (10L) | -4 | 1/4x19 | 1CT-1604 | 33 | 26 | 15 | 17 |
| -16 | M16x1.5 (10L) | -6 | 3/8x19 | 1CT-1606 | 35 | 28 | 15 | 19 |
| -16 | M16x1.5 (10L) | -8 | 1/2x14 | 1CT-1608 | 39 | 32 | 19 | 22 |
| -18 | M18x1.5 (12L) | -4 | 1/4x19 | 1CT-1804 | 35 | 28 | 15 | 19 |
| -18 | M18x1.5 (12L) | -6 | 3/8x19 | 1CT-1806 | 35 | 28 | 15 | 19 |
| -18 | M18x1.5 (12L) | -8 | 1/2x14 | 1CT-1808 | 39 | 32 | 19 | 22 |
| -22 | M22x1.5 (15L) | -6 | 3/8x19 | 1CT-2206 | 35 | 28 | 15 | 24 |
| -22 | M22x1.5 (15L) | -8 | 1/2x14 | 1CT-2208 | 40 | 33 | 19 | 24 |
| -26 | M26x1.5 (18L) | -8 | 1/2x14 | 1CT-2608 | 41 | 33 | 19 | 27 |
| -26 | M26x1.5 (18L) | -12 | 3/4x14 | 1CT-2612 | 41 | 33 | 20 | 30 |
| -30 | M30x2 (22L) | -12 | 3/4x14 | 1CT-3012 | 43 | 35 | 20 | 32 |
| -30 | M30x2 (22L) | -16 | 1x11 | 1CT-3016 | 50 | 42 | 25 | 36 |
| -36 | M36x2 (28L) | -16 | 1x11 | 1CT-3616 | 52 | 45 | 26 | 38 |
| -36 | M36x2 (28L) | -20 | 1.1/4x11 | 1CT-3620 | 56 | 49 | 27 | 50 |
| -45 | M45x2 (35L) | -20 | 1.1/4x11 | 1CT-4520 | 58 | 51 | 27 | 50 |
| -52 | M52x2 (42L) | -24 | 1.1/2x11 | 1CT-5224 | 60 | 53 | 27 | 55 |

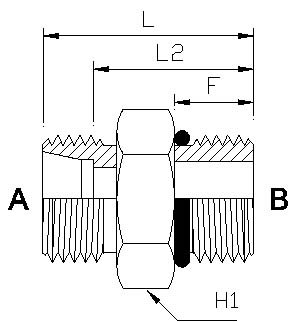

1CO/1DO - METRIC BITE TYPE X ORB MALE STRAIGHT
| Thread A | Thread B | Part No | L | L2 | F | H1 | ||
| Dash | DKL | Dash | UNO | mm | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -7 | 7/16-20 | 1CO-1207 | 25 | 18 | 9 | 14 |
| -14 | M14x1.5 (08L) | -7 | 7/16x20 | 1CO-1407 | 26 | 19 | 9 | 17 |
| -14 | M14x1.5 (08L) | -9 | 9/16x18 | 1CO-1409 | 27 | 19 | 10 | 17 |
| -14 | M14x1.5 (08L) | -12 | 3/4x16 | 1CO-1412 | 28 | 10 | 11 | 24 |
| -16 | M16x1.5 (10L) | -7 | 7/16x20 | 1CO-1607 | 27 | 20 | 9 | 17 |
| -16 | M16x1.5 (10L) | -9 | 9/16x18 | 1CO-1609 | 27 | 19 | 10 | 17 |
| -16 | M16x1.5 (10L) | -12 | 3/4x16 | 1CO-1612 | 31 | 25 | 11 | 24 |
| -16 | M16x1.5 (10L) | -14 | 7/8-14 | 1CO-1614 | 31 | 25 | 13 | 27 |
| -18 | M18x1.5 (12L) | -9 | 9/16x18 | 1CO-1809 | 28 | 21 | 10 | 19 |
| -18 | M18x1.5 (12L) | -12 | 3/4x16 | 1CO-1812 | 31 | 24 | 11 | 24 |
| -18 | M18x1.5 (12L) | -14 | 7/8x14 | 1CO-1814 | 34 | 27 | 13 | 27 |
| -18 | M18x1.5 (12L) | -17 | 1.1/16-12 | 1CO-1817 | 36 | 29 | 15 | 32 |
| -22 | M22x1.5 (15L) | -9 | 9/16-18 | 1CO-2209 | 31 | 24 | 10 | 24 |
| -22 | M22x1.5 (15L) | -12 | 3/4x16 | 1CO-2212 | 32 | 25 | 11 | 24 |
| -22 | M22x1.5 (15L) | -14 | 7/8x14 | 1CO-2214 | 35 | 28 | 13 | 27 |
| -22 | M22x1.5 (15L) | -14 | 1.1/16x12 | 1CO-2217 | 37 | 30 | 15 | 32 |
| -26 | M26x1.5 (18L) | -12 | 3/4x16 | 1CO-2612 | 33 | 26 | 11 | 27 |
| -26 | M26x1.5 (18L) | -14 | 7/8x14 | 1CO-2614 | 35 | 27 | 13 | 27 |
| -26 | M26x1.5 (18L) | -17 | 1.1/16x12 | 1CO-2617 | 39 | 32 | 15 | 32 |
| -30 | M30x2 (22L) | -12 | 3/4-16 | 1CO-3012 | 33 | 25 | 11 | 32 |
| -30 | M30x2 (22L) | -14 | 7/8x14 | 1CO-3014 | 37 | 30 | 13 | 32 |
| -30 | M30x2 (22L) | -17 | 1.1/16x12 | 1CO-3017 | 39 | 32 | 15 | 32 |
| -30 | M30x2 (22L) | -21 | 1.5/16x12 | 1CO-3021 | 40 | 33 | 15 | 41 |
| -36 | M36x2 (28L) | -17 | 1.1/16x12 | 1CO-3617 | 40 | 33 | 15 | 41 |
| -36 | M36x2 (28L) | -21 | 1.5/16x12 | 1CO-3621 | 40 | 33 | 15 | 41 |
| -36 | M36x2 (28L) | -26 | 1.5/8-12 | 1CO-3626 | 41 | 31 | 16 | 50 |
| -45 | M45x2 (35L) | -21 | 1.5/16x12 | 1CO-4521 | 43 | 33 | 15 | 50 |
| -45 | M45x2 (35L) | -26 | 1.5/8x12 | 1CO-4526 | 43 | 33 | 15 | 50 |
| -52 | M52x2 (42L) | -26 | 1.5/8x12 | 1CO-5226 | 45 | 34 | 15 | 60 |
2C/2D - MALE TO FEMALE METRIC BITE TYPE STRAIGHT
| A | B | Part No | L | L2 | H1 | H | ||
| Dash | DKL | Dash | DKOL | mm | mm | mm | mm | |
| -12 | M12x1.5 (08L) | -12 | M12x1.5 (08L) | 2C-12 | 43 | 36 | 12 | 14 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 2C-14 | 43 | 36 | 14 | 17 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 2C-16 | 43 | 36 | 17 | 19 |
| -18 | M16x1.5 (12L) | -18 | M16x1.5 (12L) | 2C-18 | 43 | 36 | 19 | 22 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 2C-22 | 43 | 36 | 24 | 27 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 2C-26 | 44 | 36 | 27 | 32 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 2C-30 | 48 | 40 | 32 | 36 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 2C-36 | 48 | 40 | 41 | 41 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 2C-45 | 61 | 50 | 46 | 50 |
| -12 | M12x1.5 (06L) | -14 | M14x1.5 (08L) | 2C-1214 | 31 | 24 | 17 | 14 |
| -12 | M12x1.5 (06L) | -16 | M16x1.5 (10L) | 2C-1216 | 32 | 25 | 19 | 19 |
| -12 | M12x1.5 (06L) | -18 | M18x1.5 (12L) | 2C-1218 | 32 | 25 | 0 | 22 |
| -12 | M12x1.5 (06L) | -26 | M26x1.5 (18L) | 2C-1226 | 36 | 28 | 0 | 32 |
| -14 | M14x1.5 (08L) | -12 | M12x1.5 (06L) | 2C-1412 | 31 | 24 | 12 | 17 |
| -14 | M14x1.5 (08L) | -16 | M16x1.5 (10L) | 2C-1416 | 32 | 0 | 0 | 19 |
| -14 | M14x1.5 (08L) | -18 | M18x1.5 (12L) | 2C-1418 | 32 | 0 | 0 | 22 |
| -14 | M14x1.5 (08L) | -22 | M22x1.5 (15L) | 2C-1422 | 36 | 0 | 0 | 27 |
| -14 | M14x1.5 (08L) | -26 | M26x1.5 (18L) | 2C-1426 | 36 | 0 | 0 | 32 |
| -16 | M16x1.5 (10L) | -12 | M12x1.5 (06L) | 2C-1612 | 32 | 25 | 14 | 19 |
| -16 | M16x1.5 (10L) | -14 | M14x1.5 (08L) | 2C-1614 | 32 | 25 | 14 | 19 |
| -16 | M16x1.5 (10L) | -18 | M18x1.5 (12L) | 2C-1618 | 33 | 0 | 0 | 22 |
| -16 | M16x1.5 (10L) | -22 | M22x1.5 (15L) | 2C-1622 | 37 | 0 | 0 | 27 |
| -16 | M16x1.5 (10L) | -26 | M26x1.5 (18L) | 2C-1626 | 37 | 0 | 0 | 32 |
| -16 | M16x1.5 (10L) | -30 | M30x2 (22L) | 2C-1630 | 40 | 0 | 0 | 36 |
| -18 | M18x1.5 (12L) | -22 | M22x1.5 (15L) | 2C-1822 | 0 | 0 | 0 | 27 |
| -18 | M18x1.5 (12L) | -26 | M26x1.5 (18L) | 2C-1826 | 0 | 0 | 0 | 32 |
| -18 | M18x1.5 (12L) | -30 | M30x2 (22L) | 2C-1830 | 0 | 0 | 0 | 36 |
| -18 | M18x1.5 (12L) | -36 | M36x2 (28L) | 2C-1836 | 0 | 0 | 0 | 41 |
| -22 | M22x1.5 (15L) | -16 | M16x1.5 (10L) | 2C-2216 | 37 | 30 | 19 | 27 |
| -22 | M22x1.5 (15L) | -26 | M26x1.5 (18L) | 2C-2226 | 0 | 0 | 0 | 32 |
| -22 | M22x1.5 (15L) | -30 | M30x2 (22L) | 2C-2230 | 0 | 0 | 0 | 36 |
| -22 | M22x1.5 (15L) | -36 | M36x2 (28L) | 2C-2236 | 0 | 0 | 0 | 41 |
| -22 | M22x1.5 (15L) | -45 | M45x2 (35L) | 2C-2245 | 0 | 0 | 0 | 50 |
| -26 | M26x1.5 (18L) | -30 | M30x2 (22L) | 2C-2630 | 0 | 0 | 0 | 36 |
| -26 | M26x1.5 (18L) | -36 | M36x2 (28L) | 2C-2636 | 0 | 0 | 0 | 41 |
| -26 | M26x1.5 (18L) | -45 | M45x2 (35L) | 2C-2645 | 0 | 0 | 0 | 50 |
| -26 | M26x1.5 (18L) | -52 | M52x2 (42L) | 2C-2652 | 0 | 0 | 0 | 60 |
| -30 | M30x2 (22L) | -36 | M36x2 (28L) | 2C-3036 | 0 | 0 | 0 | 41 |
| -30 | M30x2 (22L) | -45 | M45x2 (35L) | 2C-3045 | 0 | 0 | 0 | 50 |
| -30 | M30x2 (22L) | -52 | M52x2 (42L) | 2C-3052 | 0 | 0 | 0 | 60 |
| -36 | M36x2 (28L) | -45 | M45x2 (35L) | 2C-3645 | 0 | 0 | 0 | 50 |
| -36 | M36x2 (28L) | -52 | M52x2 (42L) | 2C-3652 | 0 | 0 | 0 | 60 |
| -45 | M45x2 (35L) | -52 | M52x2 (42L) | 2C-4552 | 0 | 0 | 0 | 60 |
| -52 | M52x2 (42L) | -45 | M45x2 (35L) | 2C-5245 | 54 | 43 | 50 | 50 |
3C/3D - FEMALE TO FEMALE METRIC BITYE TYPE STRAIGHT
| Thread A | Thread B | Part No | L | H | H1 | ||
| Dash | DKOL | Dash | DKOL | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 3C-12 | 33 | 14 | 14 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 3C-14 | 33 | 17 | 17 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 3C-16 | 34 | 19 | 19 |
| -16 | M16x1.5 (10L) | -14 | M14x1.5 (08L) | 3C-1614 | 34 | 19 | 17 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 3C-18 | 34 | 22 | 22 |
| -18 | M18x1.5 (12L) | -14 | M14x1.5 (08L) | 3C-1814 | 34 | 22 | 17 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 3C-22 | 39 | 27 | 27 |
| -26 | M26x1.5 (18L) | -22 | M22x1.5 (15L) | 3C-2622 | 40 | 32 | 27 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 3C-26 | 38 | 32 | 32 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 3C-30 | 44 | 36 | 36 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 3C-36 | 48 | 41 | 41 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 3C-45 | 52 | 50 | 50 |
| -52 | M52x2 (42L) | -52 | M52x2 (42L) | 3C-52 | 57 | 60 | 60 |
1C9/1D9 - MALE TO MALE METRIC BITE TYPE 90 ELBOW
| Thread A | Thread B | Part No | L1 | L2 | S1 | ||
| Dash | DKL Metric | Dash | DKL Metric | mm | mm | mm | |
| -08LL | M08x1.0 (04LL) | -08LL | M08x1.0 (04LL) | 1C9-08LL | 15 | 11 | 9 |
| -10LL | M10x1.0 (06LL) | -10LL | M10x1.0 (06LL) | 1C9-10LL | 15 | 10 | 9 |
| -12LL | M12x1.0 (08LL) | -12LL | M12x1.0 (08LL) | 1C9-12LL | 17 | 12 | 12 |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 1C9-12 | 19 | 12 | 12 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 1C9-14 | 21 | 14 | 12 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 1C9-16 | 22 | 15 | 14 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 1C9-18 | 24 | 17 | 17 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 1C9-22 | 28 | 21 | 19 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 1C9-26 | 31 | 24 | 24 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 1C9-30 | 35 | 28 | 27 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 1C9-36 | 38 | 31 | 36 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 1C9-45 | 45 | 35 | 41 |
| -52 | M52X2 (42L) | -52 | M52X2 (42L) | 1C9-52 | 51 | 40 | 50 |
2C9/2D9 - MALE TO FEMALE METRIC BITE TYPE 90 ELBOW
| A | B | Part No | L1 | L2 | L3 | S1 | ||
| Dash | DKL | Dash | DKOL | mm | mm | mm | mm | |
| -12 | M12x1.5 (06L) | -12 | M12x1.5 (06L) | 2C9-12 | 19 | 12 | 26 | 12 |
| -14 | M14x1.5 (08L) | -14 | M14x1.5 (08L) | 2C9-14 | 21 | 14 | 28 | 12 |
| -16 | M16x1.5 (10L) | -16 | M16x1.5 (10L) | 2C9-16 | 22 | 15 | 29 | 14 |
| -18 | M18x1.5 (12L) | -18 | M18x1.5 (12L) | 2C9-18 | 24 | 17 | 30 | 17 |
| -22 | M22x1.5 (15L) | -22 | M22x1.5 (15L) | 2C9-22 | 28 | 21 | 33 | 19 |
| -26 | M26x1.5 (18L) | -26 | M26x1.5 (18L) | 2C9-26 | 31 | 24 | 36 | 24 |
| -30 | M30x2 (22L) | -30 | M30x2 (22L) | 2C9-30 | 35 | 28 | 39 | 27 |
| -36 | M36x2 (28L) | -36 | M36x2 (28L) | 2C9-36 | 38 | 31 | 42 | 36 |
| -45 | M45x2 (35L) | -45 | M45x2 (35L) | 2C9-45 | 45 | 35 | 51 | 41 |
| -52 | M52x2 (42L) | -52 | M52x2 (42L) | 2C9-52 | 51 | 40 | 60 | 50 |
AC/AD - MALE METRIC BITE TYPE TEE
| A | B | C | Part No | E | F | G | S1 | |||
| Dash | DKL | Dash | DKL | Dash | DKL | mm | mm | mm | mm | |
| -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | AC-12 | 19 | 19 | 19 | 12 |
| -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | AC-14 | 21 | 21 | 21 | 12 |
| -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | AC-16 | 22 | 22 | 22 | 14 |
| -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | AC-18 | 24 | 24 | 24 | 17 |
| -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | AC-22 | 28 | 28 | 28 | 19 |
| -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | AC-26 | 31 | 31 | 31 | 24 |
| -30 | M30x2(22L) | -30 | M30x2(22L) | -30 | M30x2(22L) | AC-30 | 35 | 35 | 35 | 27 |
| -36 | M36x2(28L) | -36 | M36x2(28L) | -36 | M36x2(28L) | AC-36 | 38 | 38 | 38 | 36 |
| -45 | M45x2(35L) | -45 | M45x2(35L) | -45 | M45x2(35L) | AC-45 | 45 | 45 | 45 | 41 |
| -52 | M52x2(42L) | -52 | M52x2(42L) | -52 | M52x2(42L) | AC-52 | 51 | 51 | 51 | 50 |
BC/BD - MALE TO FEMALE METRIC BITE TYPE BRANCH TEE
| A | B | C | Part No | E | F | G | S1 | H | |||
| Dash | DKL | Dash | DKL | Dash | DKOL | mm | mm | mm | mm | mm | |
| -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | BC-12 | 19 | 19 | 26 | 12 | 14 |
| -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | BC-14 | 21 | 21 | 28 | 12 | 17 |
| -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | BC-16 | 22 | 22 | 29 | 14 | 19 |
| -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | BC-18 | 24 | 24 | 30 | 17 | 22 |
| -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | BC-22 | 28 | 28 | 33 | 19 | 27 |
| -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | BC-26 | 31 | 31 | 36 | 24 | 32 |
| -30 | M30x2(22L) | -30 | M30x2(22L) | -30 | M30x2(22L) | BC-30 | 35 | 35 | 39 | 27 | 36 |
| -36 | M36x2(28L) | -36 | M36x2(28L) | -36 | M36x2(28L) | BC-36 | 38 | 38 | 42 | 36 | 41 |
| -45 | M45x2(35L) | -45 | M45x2(35L) | -45 | M45x2(35L) | BC-45 | 45 | 45 | 51 | 41 | 50 |
| -52 | M52x2(42L) | -52 | M52x2(42L) | -52 | M52x2(42L) | BC-52 | 51 | 51 | 56 | 50 | 60 |

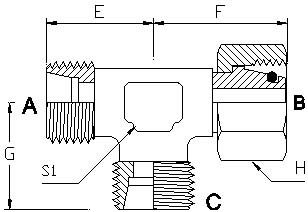

CC/CD - MALE TO FEMALE METRIC BITE TYPE RUN TEE
| A | B | C | Part No | E | F | G | S1 | H | |||
| Dash | DKL | Dash | DKL | Dash | DKL | mm | mm | mm | mm | mm | |
| -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | -12 | M12x1.5(06L) | CC-12 | 19 | 26 | 19 | 12 | 14 |
| -14 | M14x1.5(08L) | -14 | M14x1.5(08L) | -14 | M14x1.5(08l) | CC-14 | 21 | 28 | 21 | 12 | 17 |
| -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | -16 | M16x1.5(10L) | CC-16 | 22 | 29 | 22 | 14 | 19 |
| -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | -18 | M18x1.5(12L) | CC-18 | 24 | 30 | 24 | 17 | 22 |
| -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | -22 | M22x1.5(15L) | CC-22 | 28 | 33 | 28 | 19 | 27 |
| -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | -26 | M26x1.5(18L) | CC-26 | 31 | 36 | 31 | 24 | 32 |
| -30 | M30x2(22L) | -30 | M30x2(22L) | -30 | M30x2(22L) | CC-30 | 35 | 39 | 35 | 27 | 36 |
| -36 | M36x2(28L) | -36 | M36x2(28L) | -36 | M36x2(28L) | CC-36 | 38 | 42 | 38 | 36 | 41 |
| -45 | M45x2(35L) | -45 | M45x2(35L) | -45 | M45x2(35L) | CC-45 | 45 | 51 | 45 | 41 | 50 |
| -52 | M52x2(42L) | -52 | M52x2(42L) | -52 | M52x2(42L) | CC-52 | 51 | 56 | 51 | 50 | 60 |
Note: In case if you’re interested to order the adapter in complete set with cutting ring and nut, it’s necessary to insert suffix "RN" after our part number, such as "1C-RN/1D-RN".
Details
1. Completed: standard zinc plating (Cr3, Silver), nickel plating, and zinc nickel plating (it can pass 700-1000 hours of salt spray test requirements).
2. Sizes Available: M12x1.5 to M52x2.
3. Pressure: from 5000 PSI to 10,000 PSI, high pressure is available.
4. Samples: we can provide 2-3 pieces free samples for testing before the trial order.
5. MOQ: We have most sizes in stock, thus there isn't one; if not, there is a 500 piece minimum order quantity.
6. Material: brass, stainless steel (304 or 316L), carbon steel (#45 steel).
7. Standard: DIN/EATON standard or as per drawing and samples (OEM).
8. Delivery: 30-45 days for production orders and 7-15 working days for stock orders.
