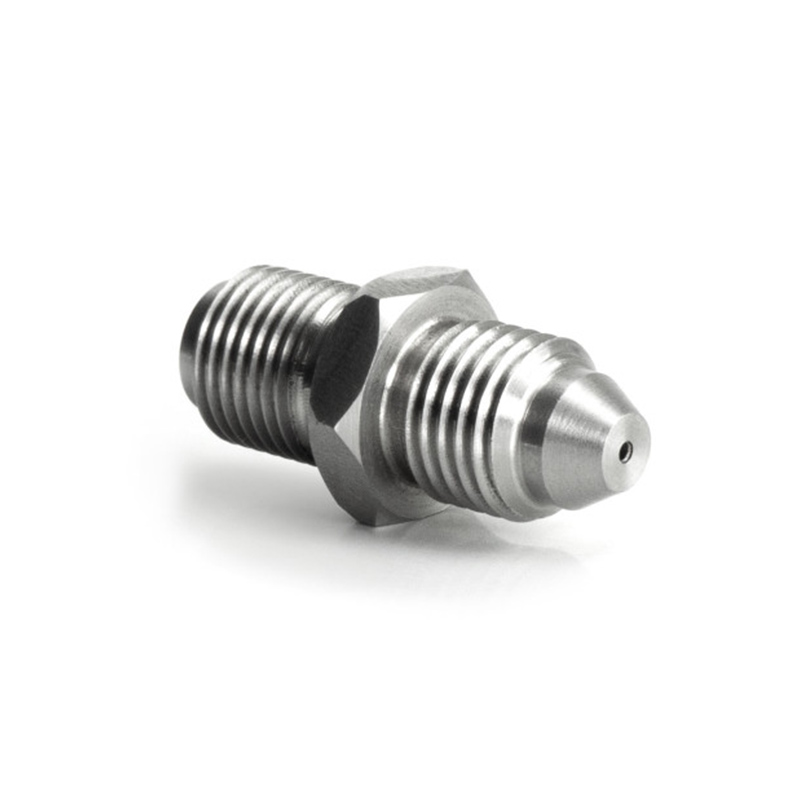

Precision Hydraulic Restricted Adapters with Flow Control
Restricted Adapters are specialized hydraulic fittings designed to control and limit fluid flow in high-pressure systems. These adapters feature an integrated restrictor orifice that precisely regulates flow rates, preventing damage from excessive pressure surges. Ideal for pressure control circuits, cylinder speed modulation, and metering applications, they ensure system stability and efficiency. Available in multiple restrictor sizes (e.g., R.016 to R.095), these adapters are customizable for industrial, mobile, and agricultural hydraulic systems.
Description
Key Features & Manufacturing Process
1. Precision Flow Restriction
Laser-drilled or CNC-machined orifices ensure consistent flow rates (e.g., R.040 for moderate flow, R.000 for full blockage).
Tolerance within ±0.001 inches for critical applications.
2. Robust Construction
Made from high-tensile carbon steel or stainless steel for corrosion resistance and durability.
Optional coatings (zinc plating, phosphate) for harsh environments.
3. Thread Compatibility
Standard threads (NPT, BSPP, JIC) for seamless integration into existing hydraulic lines.
4. Customizable Options
Restrictor sizes tailored to specific flow requirements (e.g., R.062 for fast-acting cylinders).

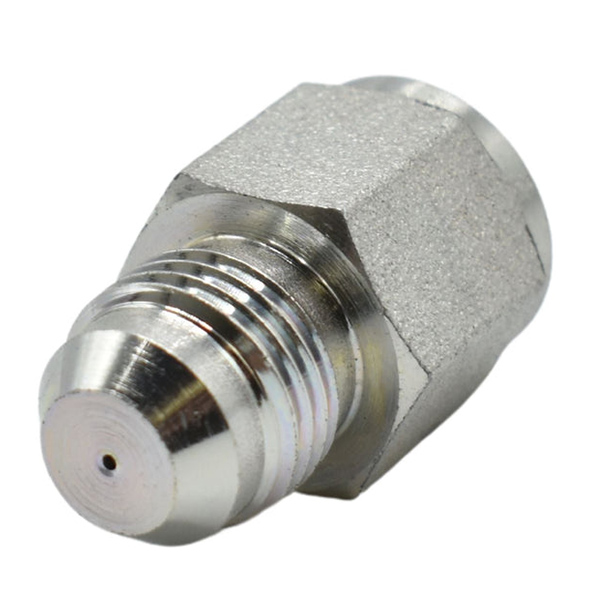

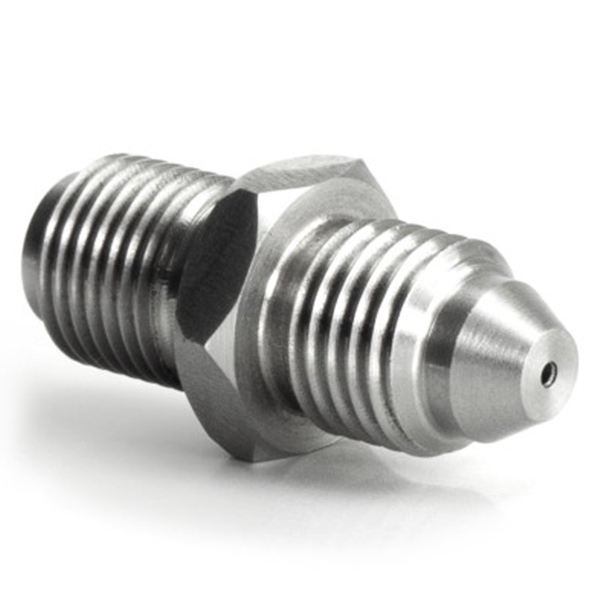

Restricted Orifice Adapter
Restricted AdaptersAdvantages Over Standard Adapters
Prevents System Damage: Mitigates shock waves from sudden flow changes.
Energy Efficiency: Reduces heat generation by optimizing flow rates.
Leak Prevention: Minimizes fluid waste and environmental risks.
Easy Installation: Drop-in replacement for non-restricted adapters.
Why Choose Our Restricted Adapters?
1, Tested Performance: Each unit undergoes flow rate and pressure testing (up to 5,000 PSI).
2, Wide Size Range: From R.016 (minimal flow) to R.095 (high flow).
3, Quick Delivery: Bulk orders available with OEM certifications.
Usage Guidelines
⚠ Installation: Ensure correct thread engagement to avoid cross-threading.
⚠ Maintenance: Inspect orifices for debris buildup periodically.
⚠ Customization: Specify restrictor size (e.g., R.031) when ordering.
Application
✔ Pressure Control Circuits: Prevents pump overload by limiting flow to sensitive components.
✔ Cylinder Speed Regulation: Ensures smooth, controlled movement in lifting equipment.
✔ Metering Systems: Delivers precise fluid volumes in lubrication or fuel systems.
✔ Mobile Hydraulics: Used in excavators, tractors, and log splitters to protect valves.
