SAE Standard Carbon Steel Test Point Hydraulic Adapters – High-Pressure Compatible
Our SAE Standard Carbon Steel Test Point Hydraulic Adapters are precision-engineered fittings designed for high-pressure hydraulic and lubrication systems. Complying with SAE J514, J1926, and other industry standards, these adapters ensure secure, leak-proof connections for pressure testing, diagnostics, and maintenance. Built from durable carbon steel, they withstand extreme pressures (up to several thousand PSI) while offering seamless compatibility with SAE-compliant components. The thread include JIC , ORFS.
Description
6564
FS6564Why Choose Our SAE Test Point Adapters?
Reliability: Rigorously tested to meet SAE and industry performance benchmarks.
Global Standard Compliance: Ensures seamless integration with existing hydraulic systems.
Enhanced Safety: Robust construction minimizes failure risks under high pressure.
Wide Industry Use: Trusted by OEMs, maintenance teams, and fluid power engineers.
Technical Specifications
Material: Carbon Steel (optional stainless steel upon request)
Standards: SAE J514, SAE J1926
Thread Types: Straight thread (JIC, ORFS), tapered thread options available
Pressure Rating: Up to 5,000 PSI (dependent on configuration)
Temperature Range: -20°F to +250°F (-29°C to +121°C)
Surface Treatment: Zinc-plated or black oxide for corrosion resistance
Conclusion
For industries demanding precision, durability, and compliance, our SAE Standard Carbon Steel Test Point Adapters deliver unmatched performance. Whether for diagnostics, maintenance, or system upgrades, these fittings provide a reliable, standardized solution for high-pressure fluid systems.
Explore our catalog today for SAE-compliant hydraulic test point solutions!
Technical Data
* Does not include Test Port Connector. Available seperately.

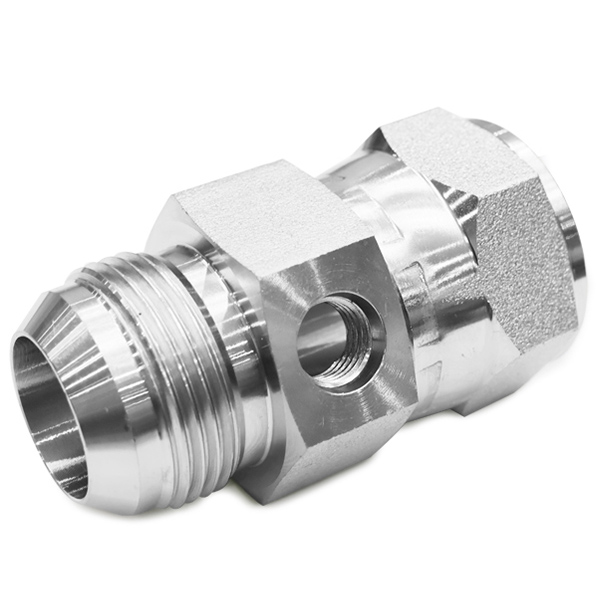

JIC M JIC F - 7/16" UNO CROSS PORT (figure 6564)
| Thread A / B | Thread C | Part No | E | F | N | H1 | H | ||
| Dash | JIC | Dash | UNO | mm | mm | mm | mm | mm | |
| -07 | 7/16-20 | -07 | 7/16-20 | A9JO-0707 | 23 | 23 | 9 | 27 | 14.3 |
| -09 | 9/16-18 | -07 | 7/16-20 | A9JO-0907 | 23 | 24 | 10 | 27 | 17.5 |
| -12 | 3/4-16 | -07 | 7/16-20 | A9JO-1207 | 26 | 26 | 11 | 27 | 22.2 |
| -14 | 7/8-14 | -07 | 7/16-20 | A9JO-1407 | 28 | 28 | 13 | 27 | 25.4 |
| -17 | 1.1/16-12 | -07 | 7/16-20 | A9JO-1707 | 31 | 30 | 15 | 32 | 32 |
| -21 | 1.5/16-12 | -07 | 7/16-20 | A9JO-2107 | 32 | 33 | 16 | 38 | 38 |
| -26 | 1.5/8-12 | -07 | 7/16-20 | A9JO-2607 | 33 | 35 | 17 | 46 | 50 |
* Does not include Test Port Connector. Available seperately.

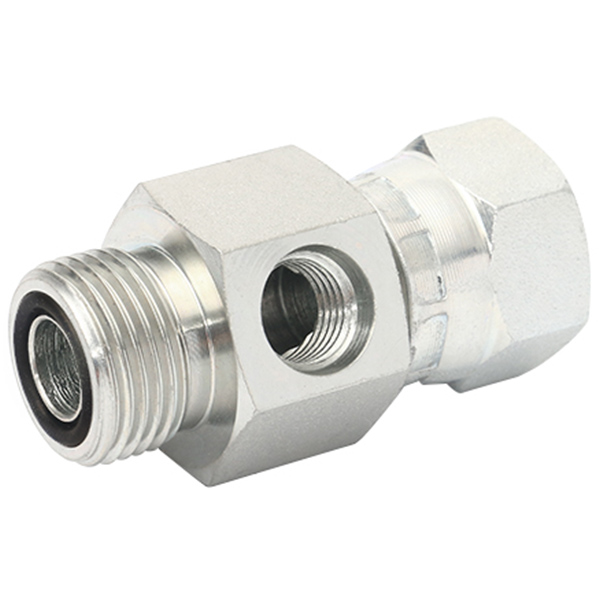

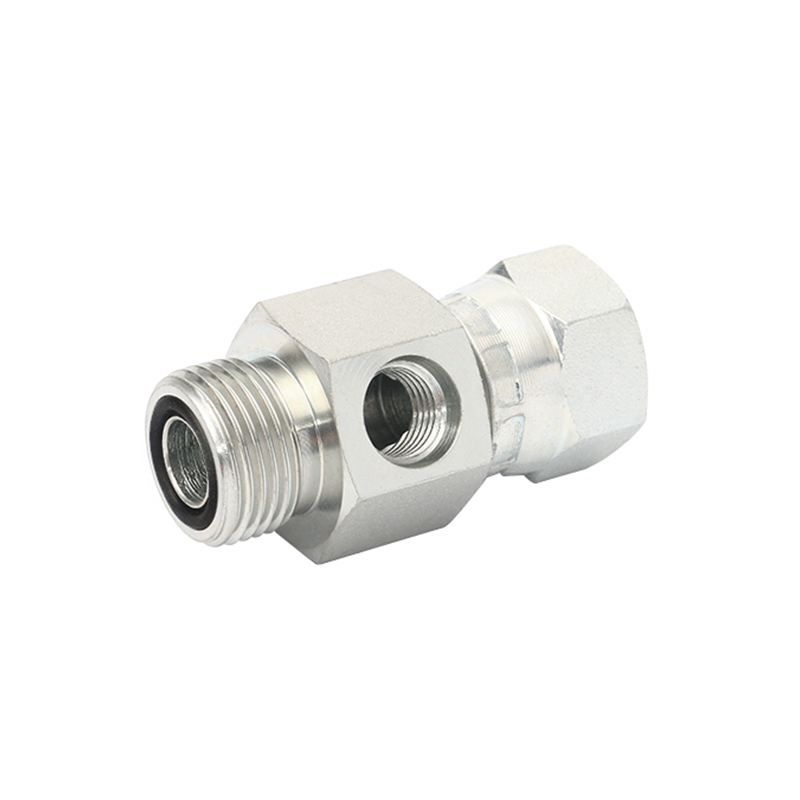

ORFS M X ORFS F - 7/16" UNO CROSS PORT (figure 6574/FS6564)
| Thread A / B | Thread C | Part No | E | F | N | H1 | H | ||
| Dash | JIC | Dash | UNO | mm | mm | mm | mm | mm | |
| -09 | 9/16-18 | -07 | 7/16-20 | A9FO-0907 | 19 | 25 | 8 | 27 | 17.5 |
| -11 | 11/16-16 | -07 | 7/16-20 | A9FO-1107 | 20 | 27 | 10 | 27 | 20.6 |
| -13 | 13/16-16 | -07 | 7/16-20 | A9FO-1307 | 22 | 30 | 11 | 27 | 23.8 |
| -16 | 1-14 | -07 | 7/16-20 | A9FO-1607 | 24 | 33 | 14 | 27 | 28.6 |
| -19 | 1.3/16-12 | -07 | 7/16-20 | A9FO-1907 | 26 | 37 | 15 | 32 | 34.9 |
| -23 | 1.7/16-12 | -07 | 7/16-20 | A9FO-2307 | 27 | 39 | 16 | 38 | 41.3 |
Application
These SAE test point adapters are essential for industries requiring reliable pressure monitoring and fluid system maintenance:
1. Hydraulic Systems – Used in construction machinery, agricultural equipment, and industrial hydraulics for pressure testing.
2. Lubrication Systems – Facilitate oil pressure checks and sampling in engines, gearboxes, and heavy-duty machinery.
3. Fluid Power Systems – Enable quick diagnostics in pneumatic and hydraulic circuits.
4. Mobile Equipment – Ideal for trucks, cranes, and mining vehicles where high-pressure resilience is critical.
5. Manufacturing & Maintenance – Serve as standardized access points for gauges, sensors, and testing tools.
