Product Short Description:

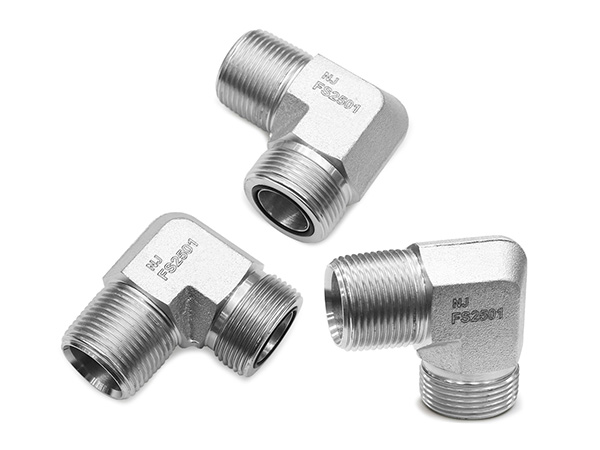

SAE J1453-compliant ORFS (O-Ring Face Seal) hydraulic fittings eliminate leakage at critical connections. Engineered with precision-machined carbon/stainless steel and military-grade elastomers, these fittings deliver 6,000+ PSI pressure integrity across hydraulic, automotive, and industrial systems.
5 methods to identify high-quality hydraulic fittings:
Method 1: Verify Sealing Surface Perfection
Premium Sign: Mirror-finish machining (≤32 μin Ra)
Why it Matters: Microscopic grooves cause spiral leaks. Our CNC-polished sealing faces exceed SAE J1453 standards, ensuring O-ring compression uniformity.
Method 2: Material Certification Check
Premium Sign: Traceable mill test reports
Critical Proof:
Carbon Steel: Zn-Ni plating (500hrs salt spray resistance)
Stainless Steel: 304/316L with PMI verification
Industry Failure: Substandard alloys crack under 3,000 PSI impulse cycles
Method 3: O-Ring Quality Autopsy
Premium Markers:
Material: Viton (FKM) for >400°F thermal stability
Cross-section Tolerance: ±0.002" (ISO 3601-1 Class A)
Costly Oversight: Generic nitrile rings swell in bio-hydraulic fluids
Method 4: Dimensional Warfare Testing
Gauging per SAE J514 Annex B
10,000x pressure cycling (6,000 PSI → 0 PSI)
Torque-to-failure analysis
Result: Zero thread deformation after 3x over-torquing
Method 5: Corrosion Battle Simulation
Premium Differentiator:168hrs ASTM B117 salt spray (no red rust)
48hrs ASTM G31 chemical immersion test
Real-World Impact: Prevents pitting corrosion in offshore drilling equipment
Industry leak prevention application scenarios
| Industry | Leak Crisis Solved | Our ORFS Solution |
| Mobile Hydraulics | Boom cylinder seal blowouts | Captive O-rings absorb 22G vibration |
| EV Battery Cooling | Coolant contamination | -65°F to 400°F thermal cycling stability |
| Food Processing | Lubricant ingress | 316L stainless + FDA-grade EPDM seals |
In depth analysis of technological advantages
A)Leak-Proof Architecture
Bidirectional Sealing: Flat flange design vs. thread-dependent seals
Reusability: 50+ assembly cycles (replace only $0.15 O-ring)
Installation Speed: 1/2-turn locking vs. 3-4 turns for JIC/NPT
B)Failure-Proof Engineering
Vibration Resistance: 6° angular misalignment tolerance
Pressure Surge Defense: 2:1 safety margin over rated working pressure
Thermal Lock: Metal-to-metal contact prevents cold flow
Founded in 2004, NingBo NJ Hydraulic Adapter Co., Ltd specializes in manufacturing hydraulic fittings, hydraulic adapters, hose fittings, split flange kits, flange adapters, flanges, reusable hose fittings, ferrules, caps and plugs and so on, then sell to worldwide, especially North America, South America, Australia, Germany, UK. Our history of collaboration with our customers for specially designed hydraulic applications, has established NJ as an industry-preferred source for customer-specific manufactured adapters. We are proud to serve major markets including: construction, agriculture, mining, industrial equipment and more. All NJ fittings are manufactured to the highest standards, meeting S.A.E./BRITISH/EATON/DIN and INTERNATIONAL specifications. We control our own manufacturing both domestically and overseas. NJ has a strong inventory reserve, more than 20,000 warehouse has more than 25,000 series and sizes of fittings, far more than the competitors twice as much. From the time we receive your order until it arrives at your facility, we're committed to meeting your deadlines and delivery requirements. Our goal is to provide your fittings as fast as possible — when and where you need them — which also helps you keep your inventories and freight costs low. Whether you have an emergency or an ongoing need, send us an email. We deliver the fittings you want, along with the high quality, best after-sales service and competitive price you deserve.
