How to Choose Metal Hose Connectors for Industrial Applications?

Introduction

Selecting the right metal hose connector is less about matching thread size and more about understanding how the assembly will behave under pressure, temperature swings, vibration, and movement. In industrial service, a poor choice can shorten equipment life, increase leak risk, and transfer stress into nearby pipework. This article explains the factors that matter most, including hose construction, braid design, fitting compatibility, media requirements, and installation constraints. By the end, you’ll have a practical framework for comparing options and specifying a connector that supports reliability, safety, and long-term performance in demanding systems.

Why Metal Hose Connectors Matter in Industrial Applications

Industrial piping systems constantly battle thermal expansion, intense mechanical vibration, and structural misalignment. Metal hose connectors serve as critical flexible links within these rigid infrastructures, preserving system integrity under severe mechanical and environmental stress. Unlike rigid pipework, which can fracture under cyclical loading, these engineered assemblies accommodate multi-directional movement without compromising flow or pressure boundaries.

Definition and Core Functions

The architecture of a metal hose connector fundamentally consists of a corrugated inner core, which provides flexibility, encased in one or more layers of braided wire mesh to prevent elongation under internal pressure. The inner core is typically manufactured in either an annular or helical profile; annular corrugations offer superior flexibility and less torsional stress during installation. These assemblies are terminated with welded or mechanically attached fittings. Their core function extends beyond simple fluid conveyance; they act as dynamic compensators. In high-velocity pump and compressor networks, these connectors routinely absorb continuous vibration frequencies up to 150 Hz and amplitudes up to 2.5 millimeters, preventing metal fatigue in adjacent rigid piping and mitigating the risk of catastrophic rupture.

Key Operating Conditions and Use Cases

Deploying metal assemblies is mandatory when operating conditions exceed the physical limitations of elastomeric, PTFE, or fluoropolymer alternatives. They are universally specified for extreme temperature gradients, efficiently handling cryogenic liquefied natural gas (LNG) at temperatures as low as -196°C, as well as superheated steam and exhaust gases exceeding +600°C. Furthermore, these connectors are essential in environments requiring absolute vacuum integrity or where the permeation of hazardous gases cannot be tolerated. In aggressive chemical processing plants, metal hoses ensure zero-diffusion performance, eliminating the fugitive emissions commonly associated with porous non-metallic hoses. They also excel in abrasive media transfers, where internal flow liners can be integrated to protect the outer corrugations from particulate wear.

How to Evaluate Metal Hose Connectors

Specifying the correct assembly requires a rigorous evaluation of metallurgical compatibility, structural design, and pressure ratings. Engineers must align the physical properties of the connector with the specific chemical and mechanical demands of the process media, ensuring a lifecycle that minimizes downtime and maintenance overhead.

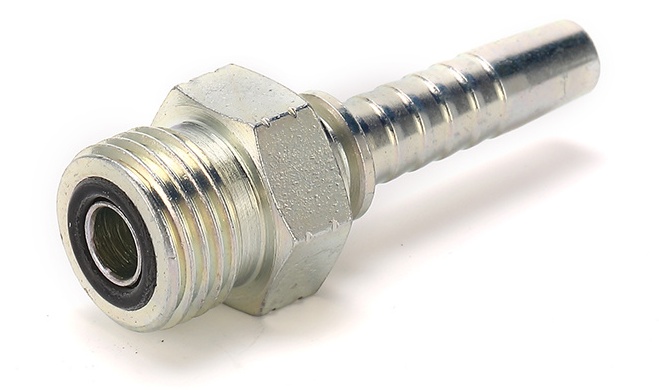

Materials, End Connections, and Sealing Options

The selection of base materials dictates both the corrosion resistance and thermal tolerance of the assembly. Standard industrial applications typically utilize 304 or 316L stainless steel for the inner core and outer braid. However, highly corrosive environments—such as those involving sulfuric acid or high-chloride seawater—demand specialized alloys like Monel 400 or Hastelloy C276. End connections are equally critical for seamless system integration. Options range from standard NPT threads and ASME B16.5 flanges (both raised and flat face) for heavy industrial pipelines to precision face-seal fittings for high-purity gas delivery systems. Sealing integrity relies heavily on the welding technique used to join the corrugated hose, the braid, and the fitting. Tungsten Inert Gas (TIG) welding remains the industry standard, ensuring a homogeneous, leak-free boundary that maintains the metallurgical properties of the parent materials.

Pressure, Media, and Performance Comparison

Pressure handling capabilities directly correlate with the hose diameter, material thickness, and the density of the braided over-layer. While the corrugated core contains the media, the wire braid dictates the pressure threshold by preventing longitudinal expansion. Adding a second layer of wire braid can increase the Maximum Allowable Working Pressure (MAWP) by 30% to 40%, depending on the nominal bore size.

When evaluating performance, engineers must also consider the pressure drop across the corrugated profile. The internal ridges create turbulent flow, which can result in a pressure drop up to 150% higher than that of smooth-bore rigid piping of equivalent diameter.

How to Choose the Right Metal Hose Connector

Translating system requirements into a precise procurement specification requires a methodical approach. Industry professionals rely on standardized methodologies to ensure no critical parameter is overlooked during the specification phase, safeguarding both personnel and capital equipment.

Step-by-Step Selection Process

The STAMPED acronym (Size, Temperature, Application, Material, Pressure, Ends, Delivery) provides a foolproof framework for selection. Engineers must accurately calculate the internal diameter to maintain acceptable fluid velocity and minimize pressure drop. Application analysis must strictly account for the minimum bend radius. If the connector is subjected to continuous flexing rather than a simple static offset, the dynamic bend radius must be applied. This typically requires a multiplier of 1.5x to 2.0x over the static bend radius minimum to prevent premature fatigue failure. Pressure calculations must also incorporate temperature derating factors. For example, the yield strength of 316L stainless steel decreases significantly at elevated temperatures, requiring a derating factor of approximately 0.74 at 400°C; this means the assembly can safely handle only 74% of its room-temperature MAWP. A standard 4:1 safety factor (burst pressure to working pressure) is universally applied in industrial sizing.

Final Decision Criteria

The final procurement decision must weigh regulatory compliance, rigorous testing protocols, and the total cost of ownership. Connectors used in critical infrastructure must adhere to international manufacturing standards such as ISO 10380 for corrugated metal hoses and the European Pressure Equipment Directive (PED 2014/68/EU). Quality assurance testing is a non-negotiable criterion prior to installation. High-purity or highly toxic applications necessitate documented helium mass spectrometry leak testing, confirming extreme leak rates of less than 1.0 × 10⁻⁶ atm cc/sec. Furthermore, evaluating a manufacturer's supply chain capabilities—including minimum order quantities (MOQs), lead times for custom weldments, and material traceability via EN 10204 3.1 certificates—ensures the final assembly meets both stringent engineering requirements and project deadlines.

Key Takeaways

· The most important conclusions and rationale for metal hose connectors

· Specs, compliance, and risk checks worth validating before you commit

· Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What operating conditions make metal hose connectors the right choice?

Use them when your system has high vibration, thermal expansion, misalignment, vacuum service, or extreme temperatures from cryogenic duty to hot steam and exhaust.

Which material should I choose for a metal hose connector?

304 suits water, air, and mild chemicals; 316L handles more corrosive media and marine use; Monel or Hastelloy fit severe chemical or chloride exposure.

How do I select the right end connection?

Match the connector to your piping standard: NPT for threaded lines, ASME flanges for industrial pipelines, and face-seal fittings for high-purity gas systems.

Does adding braid improve pressure performance?

Yes. The braid controls hose elongation under pressure, and a second braid layer can raise working pressure by roughly 30% to 40%, depending on size.

What installation detail helps prevent early failure?

Choose annular corrugated hose for better flexibility, avoid twisting during installation, and confirm the assembly is rated for both media and movement requirements.
