High Pressure NPT Fittings: Selection and Seal Integrity

In high-pressure piping, a small thread mismatch or poorly sealed joint can become a major reliability and safety problem. Tapered NPT connections remain widely used in hydraulic, petrochemical, refinery, and chemical injection systems because they are compact, familiar, and available in robust pressure classes. But their performance depends on more than nominal size or material selection. Thread geometry, sealant compatibility, pressure class, assembly technique, and the difference between NPT, NPTF, and BSPT all affect whether a connection holds at 3,000 PSI, 6,000 PSI, or beyond. This guide explains how to specify, assemble, and evaluate high-pressure tapered pipe fittings with seal integrity in mind.

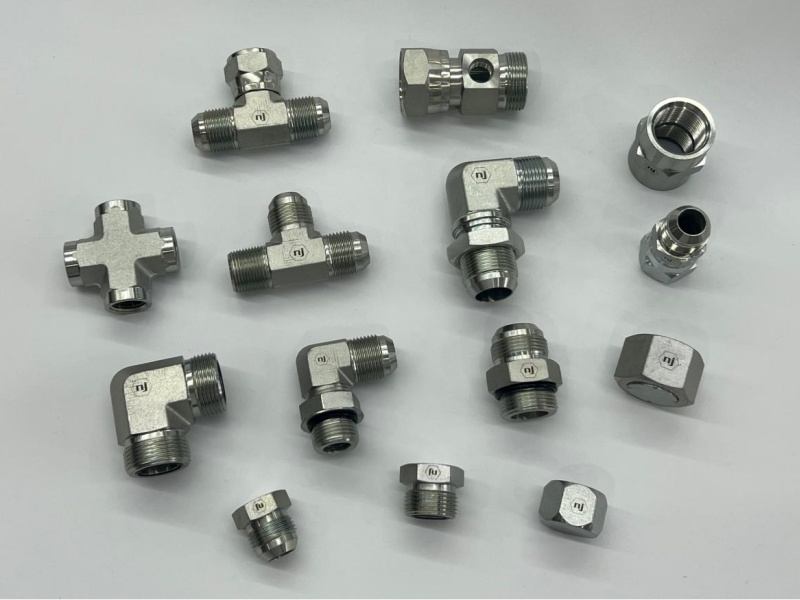

High Pressure NPT Fitting Basics

High pressure National Pipe Taper (NPT) fittings are foundational components in fluid power, petrochemical, and heavy industrial process piping systems. Designed to rigorous ASME B1.20.1 standards, these fittings utilize a specialized tapered thread geometry—specifically maintaining an approximate 1° 47' (1.7833°) taper angle across the threaded section. This taper allows the male and female threads to wedge together, creating a mechanical lock and a fluid-tight seal as they are drawn into interference. Standard pressure ratings for heavy-duty forged NPT fittings are dictated by ASME B16.11 and typically range from Class 3000 to Class 6000. In highly demanding upstream oil and gas applications, specialized Class 10000 components are utilized to withstand extreme internal hydrostatic forces safely. However, it is important to note that even within high-pressure classes, NPT connections are generally less suitable than cone-and-thread or compression fittings for applications involving severe cyclic pressure, high vibration, or frequent remakes.

Definition and common applications

The precise geometric profile of an NPT fitting features a 60-degree thread angle with intentionally truncated roots and crests. This truncation prevents the roots and crests from bottoming out before the flanks make contact, but it leaves a spiral clearance path when the threads are fully engaged. Because of this inherent spiral leak path, high-pressure NPT connections make thread sealants mandatory to achieve a reliable pressure seal. Common applications for these robust fittings span across downstream oil and gas refineries, subsea high-pressure hydraulic power units (HPUs), and chemical injection skids where continuous system pressures routinely operate between 3,000 and 10,000 PSI.

NPT vs NPTF vs BSPT threads

Engineers and piping designers must strictly differentiate between NPT, NPTF, and BSPT standards to avoid catastrophic cross-threading, galling, and subsequent seal failure. While standard NPT relies entirely on sealants to fill the spiral clearance, NPTF (Dryseal, governed by ASME B1.20.3) features a modified, controlled root and crest truncation. This allows the metal to crush and deform together, forming a metal-to-metal seal without supplementary compounds—though secondary sealants remain a standard safety practice in critical fluid applications. BSPT (British Standard Pipe Taper, ISO 7), conversely, utilizes a 55-degree thread angle and a different pitch, making it fundamentally incompatible with American NPT standards.

Specification, Assembly, and Testing

The long-term operational integrity of high-pressure NPT connections depends heavily on rigorous assembly protocols and stringent post-assembly validation. Unlike parallel thread systems (such as SAE straight thread O-ring ports) that rely on elastomeric O-rings or bonded seals, tapered threads are highly sensitive to torque input, meticulous thread preparation, and the specific chemical characteristics of the applied sealing compound.

Thread engagement, sealants, and torque control

Optimal thread engagement is calculated using the L1 gauge length plus a specified number of wrench turns. Industry best practice dictates hand-tightening the fitting, followed by 1.5 to 3 full wrench turns to achieve the correct interference fit, depending on the fitting size. Exceeding this rotational torque threshold risks inducing severe hoop stress failure and cracking in the female fitting, while under-torquing leaves the spiral leak path physically open. High-density Polytetrafluoroethylene (PTFE) tape—meeting industrial thickness and density norms—is typically wrapped 2.5 to 3 times around the male thread. For high-vibration environments or pressures exceeding 5,000 PSI, this tape is often combined with an anaerobic thread-sealing paste. This combination lubricates the threads to prevent galling (a form of adhesive wear and seizing) during makeup—a severe risk with stainless steel—and cures into a hardened polymer barrier. Note that galling is a distinct metallurgical phenomenon from cold welding, though both can severely damage threads upon assembly.

Inspection, hydrostatic testing, and pneumatic testing

Post-assembly inspection and testing are mandatory steps to verify seal integrity before system commissioning. Hydrostatic testing is the primary validation method across the industry, typically executed at 1.5 times the Maximum Allowable Working Pressure (MAWP) in accordance with ASME B31.3 process piping standards. During this procedure, the elevated pressure is held for a minimum of 10 to 30 minutes while inspectors monitor for pressure decay or weeping at the threaded joints. Pneumatic testing, which utilizes nitrogen or clean dry air, is highly hazardous due to the stored compressive energy of gases. Consequently, formal pneumatic strength testing is generally restricted to a maximum of 110% of the design pressure per ASME B31.3. Distinct from this formal strength test, informal low-pressure diagnostic testing is often performed at much lower pressures (e.g., 100 to 150 PSI) using a liquid leak detector solution to visually identify micro-leaks.

Material Selection and Supplier Qualification

Selecting the appropriate metallurgical grade and ensuring rigorous supplier qualification are critical final steps in mitigating the high risks associated with pressurized fluid systems. The specified alloy must simultaneously satisfy the mechanical yield requirements dictated by the internal pressure and the environmental demands of the external operating conditions.

Stainless steel vs carbon steel selection

The decision between stainless steel and carbon steel hinges on the operational environment, fluid media corrosivity, and project budget constraints. Austenitic stainless steels offer exceptional corrosion resistance; grade 316 exhibits a minimum tensile strength of 75,000 PSI (515 MPa), while the low-carbon 316L variant typically provides 70,000 PSI (485 MPa). Containing high levels of chromium (16-18%) and molybdenum (2-3%), they are the default choice for offshore marine environments or sour gas applications requiring strict compliance with NACE MR0175 / ISO 15156. Conversely, forged carbon steel fittings (such as ASTM A105) provide a guaranteed minimum yield strength of 36,000 PSI and are highly cost-effective for benign indoor hydraulic or pneumatic applications. However, carbon steel requires robust protective plating, such as zinc-nickel electroplating, to prevent rapid surface oxidation.

Key Takeaways

· Confirm the thread standard before assembly because NPT and NPTF use a 60-degree thread angle, while BSPT uses a 55-degree angle and is not compatible.

· Apply a suitable thread sealant to standard NPT connections because the tapered thread design leaves a spiral leak path.

· Select forged fittings with an ASME B16.11 pressure class that matches the system, typically Class 3000 or Class 6000 for heavy-duty service.

· Consider specialized Class 10000 components only for extreme applications where the design pressure and service conditions justify them.

· Avoid standard NPT connections in systems with severe vibration, frequent remakes, or intense pressure cycling unless the design has been specifically validated.

· Control thread preparation, engagement, torque, and post-assembly testing to maintain seal integrity in high-pressure service.

Frequently Asked Questions

What makes NPT fittings suitable for high-pressure service?

NPT fittings use a tapered 60-degree thread that wedges male and female threads together. Heavy-duty forged versions are commonly rated under ASME B16.11 from Class 3000 to Class 6000, with specialized Class 10000 options for extreme service.

Do high-pressure NPT fittings require thread sealant?

Yes. Standard NPT threads have a spiral clearance path even when fully engaged, so sealant is mandatory to create a reliable pressure seal and reduce leak risk.

What is the difference between NPT and NPTF?

NPT relies on sealant to seal the thread path. NPTF, or Dryseal, has controlled root and crest geometry that can form a metal-to-metal seal, though sealant is still often recommended in critical high-pressure fluid systems.

Can NPT and BSPT fittings be connected?

No. BSPT uses a 55-degree thread angle and different pitch, while NPT uses a 60-degree thread angle. Mixing them can cause cross-threading, galling, poor engagement, and seal failure.

Are NPT fittings ideal for vibration or cyclic pressure?

Not always. For severe vibration, frequent remakes, or high cyclic pressure, cone-and-thread or compression-style fittings are often more reliable than tapered NPT connections.
