37 Degree Flare Fittings: Standards, Sizes, and Applications

Introduction

Used throughout hydraulic, pneumatic, and aerospace systems, 37 degree flare fittings provide a durable metal-to-metal seal where vibration, pressure cycling, and temperature changes can quickly expose weaker connections. Understanding how these fittings are standardized, how sizes are designated, and where they are best applied is essential for selecting compatible components and avoiding leaks or premature failures. This article explains the key standards behind 37 degree flare fittings, outlines common size conventions and pressure considerations, and shows how their design supports reliable performance in demanding fluid power installations.

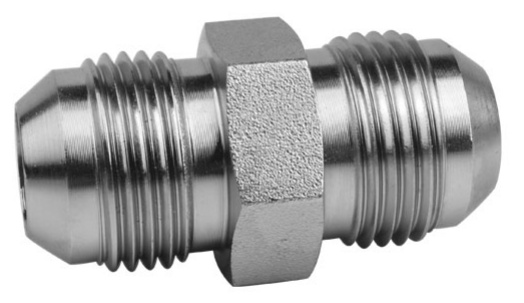

Why 37 Degree Flare Fittings Matter in Fluid Power?

Engineered to deliver robust metal-to-metal sealing in demanding fluid power applications, 37-degree flare fittings remain a cornerstone of modern hydraulic and pneumatic infrastructure. Originally developed for military and aerospace applications, these fittings rely on a precise geometric interface between a flared tube end and a matching conical fitting seat. Because the seal is achieved mechanically without elastomeric O-rings, the design offers exceptional durability across diverse thermal and chemical environments.

The reliability of this connection depends entirely on the concentricity and surface finish of the mating surfaces. When properly specified, the 37-degree flare geometry distributes compressive forces evenly, creating a leak-tight joint capable of withstanding severe mechanical shock and dynamic pressure fluctuations.

Use Cases and Operating Conditions

In industrial and mobile hydraulics, 37-degree flare fittings are heavily utilized for directional control valves, fluid reservoirs, and actuator connections. Their operational envelope typically accommodates working pressures ranging from 3,000 to 5,000 psi, depending heavily on the tube outer diameter (OD) and material construction. Heavy-duty earthmoving equipment, agricultural machinery, and stationary manufacturing presses frequently rely on these connections due to their inherent resistance to high-frequency vibration and hydraulic hammer effects.

Beyond standard hydraulics, the aerospace and defense sectors employ these fittings in fuel and lubrication lines where absolute reliability is non-negotiable. The absence of polymer seals allows the fittings to operate in cryogenic conditions or high-heat zones, managing fluid temperatures from -65°F up to +400°F when utilizing 316 stainless steel components. They are particularly favored in environments where aggressive solvents or synthetic hydraulic fluids would rapidly degrade standard elastomers.

Performance Benefits and Limitations

The primary performance advantage of the 37-degree flare fitting lies in its reusability and temperature resilience. Unlike bite-type or compression fittings that permanently deform the tubing, a flare fitting can be disassembled and reassembled multiple times without compromising the integrity of the seal, provided the sealing faces remain free of galling or severe scoring. This attribute significantly reduces maintenance downtime and component replacement costs in complex fluid networks.

However, limitations exist at the upper extremes of pressure capability. For ultra-high-pressure applications exceeding 6,000 psi, engineers typically transition to O-Ring Face Seal (ORFS) or high-pressure cone-and-thread fittings, as the 37-degree flare design becomes susceptible to nose collapse or tube extrusion under extreme hydrostatic loads. Furthermore, the flaring process itself introduces cold-working stress into the tubing, which can lead to radial cracking if the tube material lacks sufficient ductility or if the wall thickness exceeds the flaring tool's maximum specification.

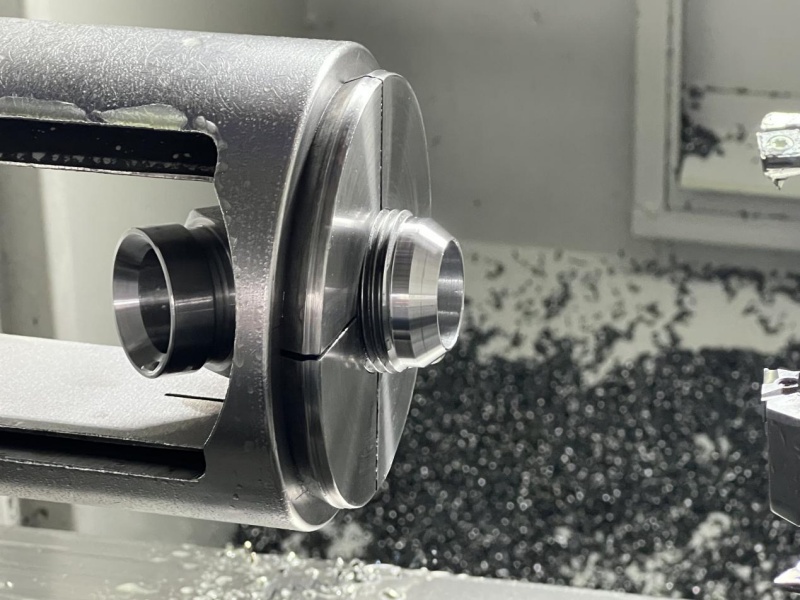

Standards, Sizes, and Technical Specifications

The widespread adoption of 37-degree flare fittings is largely driven by strict adherence to international dimensional standards. This standardization guarantees interoperability across different manufacturers, ensuring that a fitting body produced in North America mates flawlessly with a flared tube assembly fabricated in Europe or Asia.

Compliance with these technical specifications dictates not only the physical geometry of the fitting but also the allowable tolerances, thread profiles, and metallurgical requirements necessary to maintain safe pressure boundaries.

Governing Standards and Dimensions

The governing specification for industrial 37-degree flare fittings is SAE J514, which outlines the dimensional requirements, performance criteria, and testing protocols for hydraulic tube fittings. In military and aerospace contexts, the equivalent standard is MIL-DTL-18866 (formerly MIL-F-18866), which imposes even stricter quality assurance and traceability mandates. These standards cover a broad spectrum of sizes, typically accommodating tube outside diameters ranging from 1/8 inch up to 2 inches.

Under the SAE J514 framework, fittings are classified by a dash size system that corresponds to the tube OD in sixteenths of an inch. For example, a -04 fitting corresponds to a 1/4-inch tube, while a -16 fitting is designed for a 1-inch tube. The standards strictly define the 37-degree angle of the mating cone, permitting a tolerance of only +0.5 to -0.5 degrees to ensure a perfect interference fit with the flared tubing.

Threads, Pressure Ratings, and Materials

These fittings utilize Unified National (UN/UNF) straight threads, which serve solely to draw the mating surfaces together and hold them in tension; the threads themselves do not provide the fluid seal. Standard construction materials include carbon steel (typically finished with zinc-nickel plating for corrosion resistance), 316L stainless steel for harsh chemical environments, and brass for lower-pressure pneumatic or water lines.

Pressure ratings are inversely proportional to the fitting size and are heavily dependent on the material. The table below illustrates the maximum dynamic working pressures for standard carbon steel 37-degree flare fittings according to SAE J514 specifications:

Engineers must ensure that both the fitting and the selected tubing are rated for the system's maximum anticipated pressure spikes, applying an appropriate safety factor (typically 4:1 for hydraulic systems).

Selection, Installation, and Failure Prevention

Even the highest quality 37-degree flare fittings will fail if improperly selected or incorrectly installed. Mitigating joint leakage requires a holistic approach that evaluates fluid compatibility, mechanical loads, and precise assembly protocols.

Procurement teams and system designers must collaborate to balance performance requirements with supply chain realities, while maintenance technicians must adhere strictly to torque specifications to prevent premature joint failure.

Selection Criteria for Buyers and Engineers

Selection begins with matching the fitting material to both the fluid media and the external operating environment.

Key Takeaways

· The most important conclusions and rationale for 37 degree flare fittings

· Specs, compliance, and risk checks worth validating before you commit

· Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What standard covers 37 degree flare fittings?

SAE J514 is the main industrial standard. Aerospace and defense applications often use MIL-DTL-18866 for tighter quality and traceability requirements.

How are 37 degree flare fitting sizes identified?

They use dash sizes based on tube OD in sixteenths of an inch. For example, -04 fits 1/4-inch tube and -16 fits 1-inch tube.

Do the threads seal a 37 degree flare fitting?

No. The seal comes from the 37 degree metal-to-metal flare seat. The UN/UNF straight threads only clamp the mating parts together.

Where are 37 degree flare fittings commonly used?

They are common in hydraulic and pneumatic systems, including valves, reservoirs, actuators, agricultural equipment, and aerospace fuel or lubrication lines.

When should you avoid using 37 degree flare fittings?

Avoid them for ultra-high-pressure service above about 6,000 psi or when tubing cannot be flared correctly. ORFS or cone-and-thread fittings are usually better choices there.
