Hydraulic Hose Fittings Chart: Sizes, Threads, and Applications

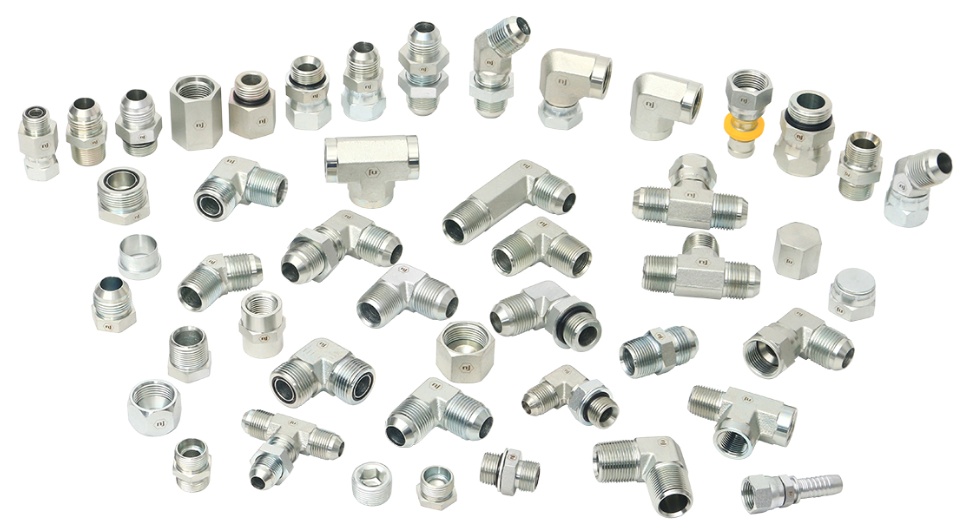

Introduction

Choosing the right hydraulic hose fitting is less about appearance and more about exact specifications. A reliable hydraulic hose fittings chart helps you match size, thread type, seat angle, and sealing method so components fit correctly and perform safely under pressure. This article explains how to read the chart, distinguish between common standards such as JIC, NPT, BSP, and ORFS , and avoid the misidentification errors that often cause leaks, downtime, or damaged equipment. By the end, you’ll have a practical framework for identifying fittings accurately and selecting the right connection for maintenance, replacement, or system design.

Why a Hydraulic Hose Fittings Chart Matters

Hydraulic systems operate under extreme stress, frequently managing fluid pressures that exceed 10,000 PSI (690 bar) in heavy industrial and mobile equipment. Maintaining the integrity of these systems relies heavily on the precise matching of hoses to their respective connection points. A hydraulic hose fittings chart serves as the definitive reference document for engineers and maintenance technicians, ensuring that the physical dimensions, thread pitches, and sealing mechanisms of every component align perfectly.

Without standardized documentation, the risk of component mismatch increases exponentially. In high-pressure fluid power systems, utilizing incorrect fittings compromises the mechanical seal, leading to catastrophic blowouts, fluid injection injuries, and severe environmental contamination. A comprehensive chart mitigates these risks by translating complex engineering specifications into accessible, cross-referenced data points.

Common fitting identification and replacement errors

The most frequent errors in hydraulic maintenance stem from visual similarities between incompatible standards. For instance, technicians often confuse the 37-degree flare of a Joint Industry Council (JIC) fitting with the 45-degree flare of a Society of Automotive Engineers (SAE) fitting. Forcing a 37-degree female swivel onto a 45-degree male flare may initially feel secure, but the compromised metal-to-metal seal will inevitably leak under dynamic pressure spikes.

Another common point of failure involves mismatched thread pitches. Attempting to mate a National Pipe Tapered (NPT) fitting with a British Standard Pipe Tapered (BSPT) port is a frequent and costly error. While a 1/2-inch NPT fitting has 14 threads per inch (TPI), the equivalent 1/2-inch BSPT fitting has 14.5 TPI. Cross-threading these components not only destroys the fitting but often strips the expensive manifold or actuator port, transforming a routine $15 replacement into a $1,500 system repair.

How to introduce fitting selection and specification

Introducing a rigorous selection protocol requires integrating the fittings chart directly into the standard operating procedures (SOPs) of the maintenance department. Organizations should position the chart as the primary diagnostic tool during the specification phase, requiring personnel to verify both the thread standard and the sealing method before authorizing part requisition.

Effective implementation involves utilizing precision measurement tools alongside the chart. Technicians must be equipped with thread pitch gauges and digital calipers accurate to +/- 0.001 inches. By mandating that technicians document the measured outer diameter (OD), inner diameter (ID), and TPI against the published chart values, facilities can virtually eliminate the guesswork that leads to premature hydraulic failures.

How to Organize Sizes and Thread Types

Organizing a hydraulic hose fittings chart requires categorizing components by their primary dimensional attributes and regional engineering standards. A well-structured chart typically separates fittings into distinct sections based on the sealing mechanism—such as metal-to-metal flares, O-ring face seals, and tapered threads—before drilling down into specific size conventions.

By segmenting the data systematically, engineers can rapidly cross-reference the physical measurements taken from a failed component with the standardized nominal sizes. This logical hierarchy prevents cross-contamination of standards, ensuring that metric systems are not inadvertently mixed with imperial systems during critical repair operations.

Size conventions, dash sizes, and hose inner diameter

The fluid power industry universally relies on the "dash size" system to denote the inner diameter (ID) of hydraulic hoses and the corresponding size of the fitting. A dash size refers to the diameter in sixteenths of an inch. For example, a -4 (dash four) fitting corresponds to a 4/16-inch, or 1/4-inch, hose ID. Similarly, a -16 fitting denotes a 1-inch ID, and a -32 indicates a 2-inch ID.

This standard convention simplifies communication across global supply chains. However, engineers must remain vigilant regarding hose wall thickness tolerances, which dictate the outer diameter (OD). While the dash size strictly governs the inner flow diameter to maintain optimal fluid velocities (typically kept below 20 feet per second for pressure lines), the OD dictates the specific ferrule or crimp shell required. The chart must therefore correlate the dash size with both the thread dimensions and the permissible hose OD ranges.

JIC, NPT, BSPP, BSPT, ORFS, and SAE thread standards

Navigating the alphabet soup of thread standards is the primary function of the fittings chart. North American equipment heavily utilizes NPT, JIC (SAE J514), and O-Ring Face Seal (ORFS / SAE J1453) standards. In contrast, European and Asian machinery frequently employs British Standard Pipe Parallel (BSPP), British Standard Pipe Tapered (BSPT), and various metric DIN standards.

Understanding the pressure limitations and sealing mechanics of each standard is crucial for system design. The table below outlines the core characteristics of the most prevalent hydraulic thread standards:

How to Use the Chart for Selection

Applying a hydraulic hose fittings chart effectively requires a methodical approach to component analysis. Industrial engineers frequently utilize the STAMPED acronym (Size, Temperature, Application, Material, Pressure, Ends, Delivery) to guide the selection process. The chart primarily addresses the "Size," "Pressure," and "Ends" variables of this framework.

Successful selection is not merely about finding a thread that screws into a port; it is about engineering a connection that will withstand the specific dynamic loads, vibration frequencies, and thermal cycling of the application. The chart acts as the translation layer between the raw physical measurements and the final engineered assembly.

Step-by-step fitting selection process

The selection process begins with accurate physical measurement.

Key Takeaways

· The most important conclusions and rationale for hydraulic hose fittings chart

· Specs, compliance, and risk checks worth validating before you commit

· Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What does a hydraulic hose fittings chart help me verify?

It helps you confirm hose dash size, thread standard, pitch, and sealing style before ordering or replacing a fitting.

How do I read hydraulic hose dash sizes?

Dash sizes show hose ID in sixteenths of an inch. Example: -4 = 4/16 in. = 1/4 in.; -16 = 1 in.

Can I interchange JIC and SAE flare fittings?

No. JIC uses a 37° flare, while SAE flare is typically 45°. They may seem to fit but often leak or fail under pressure.

What tools should I use with a hydraulic hose fittings chart?

Use digital calipers and a thread pitch gauge. Measure OD, ID, and threads per inch, then match them to the chart.

Why is mixing NPT with BSPT fittings a problem?

Their thread forms and pitches differ. Forcing them together can cross-thread the port, cause leaks, and damage expensive components.
