Types of Hydraulic Hose Fittings: Standards and Applications

Introduction

Hydraulic hose fittings do more than join components—they determine whether a fluid power system can hold pressure, resist vibration, and operate safely under real-world loads. Because fitting styles, thread forms, and sealing methods vary across standards, choosing the wrong connection can lead to leaks, premature wear, or complete system failure. This article outlines the main types of hydraulic hose fittings, explains the standards that define their dimensions and compatibility, and shows where each design is typically used. With that foundation, it becomes easier to match fittings to pressure demands, equipment specifications, and service conditions.

Why Hydraulic Hose Fittings Matter?

Fluid power systems rely entirely on the integrity of their connections to maintain pressure, transmit force, and prevent catastrophic fluid loss. The junctions where flexible hoses meet rigid components represent the highest risk areas for failure in any hydraulic circuit. Consequently, the specification of appropriate termination hardware is a critical engineering requirement rather than a secondary procurement consideration.

System inefficiencies, environmental contamination, and safety hazards frequently stem from improperly specified or installed connection points. Understanding the precise mechanical function and material science behind these components ensures that hydraulic assemblies can withstand severe dynamic loads, pressure spikes, and harsh operating environments without compromising operational continuity.

What Hydraulic Hose Fittings Are?

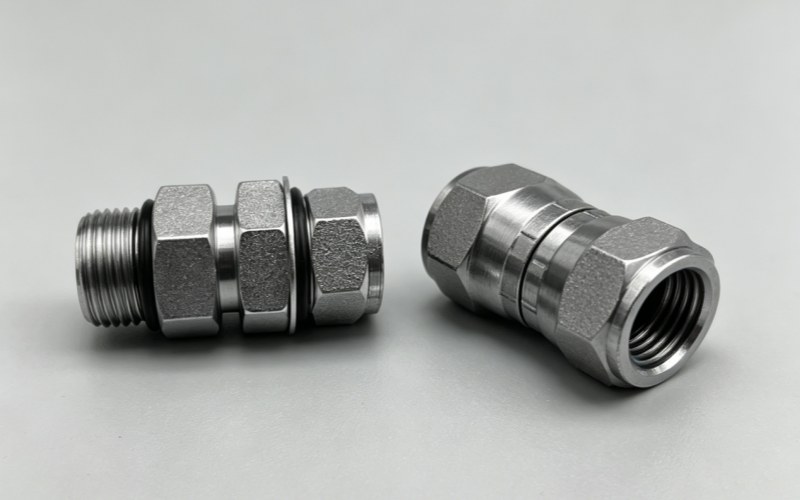

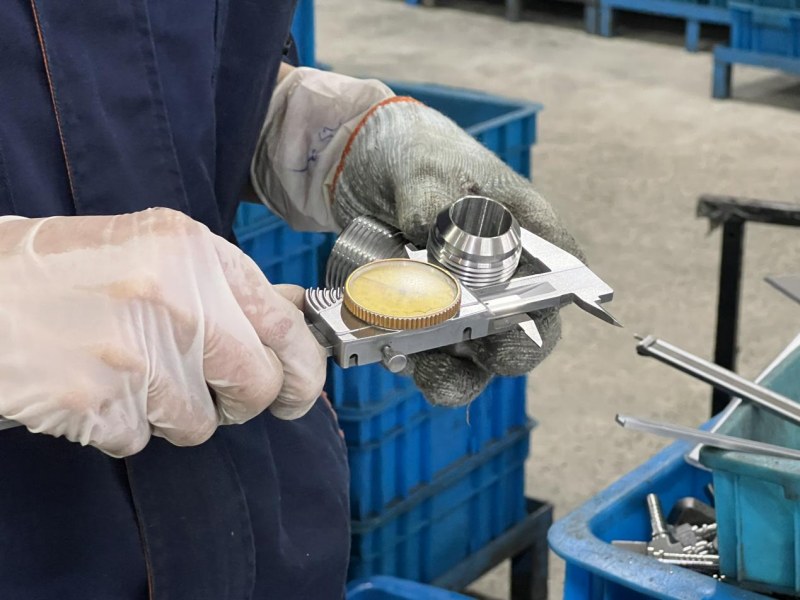

Hydraulic hose fittings are engineered mechanical connectors designed to safely bridge flexible fluid conductors with stationary components such as pumps, cylinders, and directional control valves. A complete fitting typically consists of a socket, which physically grips the outer cover and reinforcement layers of the hose, and a rigid stem that dictates the fluid pathway and interface geometry.

These components are manufactured from high-strength materials tailored to specific environmental exposures. Carbon steel with zinc-nickel plating is the industry standard for general industrial use, providing excellent tensile strength and baseline corrosion resistance. For highly corrosive environments, such as offshore drilling or chemical processing, 316 stainless steel is specified. High-pressure hydraulic applications routinely subject these fittings to continuous operating pressures exceeding 10,000 psi (690 bar), necessitating rigorous metallurgical standards and precise machining tolerances.

Key Comparison Criteria

Evaluating and comparing connection hardware requires analyzing three primary criteria: thread geometry, sealing methodology, and environmental tolerance. The sealing mechanism is the most critical differentiator. Metal-to-metal seals rely on the deformation of machined angles to prevent fluid bypass, whereas elastomeric seals utilize compressed O-rings to create a physical barrier against leaks.

Temperature tolerance is heavily dictated by the sealing material rather than the metal body. Standard Nitrile (NBR) O-rings typically operate reliably within a thermal band of -40°C to +120°C. However, applications involving synthetic fluids or extreme heat require Fluorocarbon (FKM/Viton) seals, which can maintain integrity up to +200°C. Engineers must also evaluate vibration resistance; systems subjected to high-frequency mechanical shock require O-ring face seals rather than tapered threads, which are prone to backing out under dynamic stress.

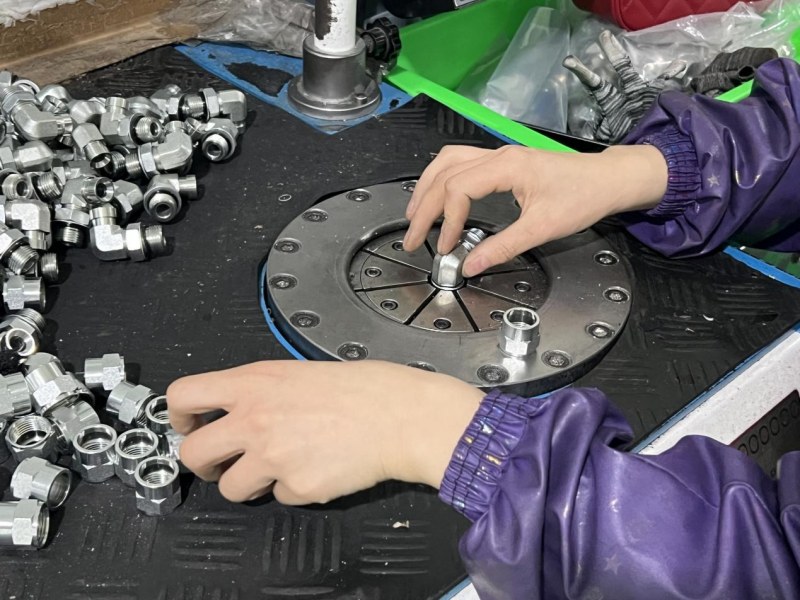

Main Types of Hydraulic Hose Fittings

The global hydraulic landscape utilizes a highly fragmented array of geometric profiles, largely driven by regional engineering standards and historical industry preferences. Identifying the correct standard is paramount, as mismatched threads or sealing angles will inevitably result in catastrophic blowouts under high pressure.

Thread and Flange Standards

The industry relies heavily on a few dominant thread and flange standards, each offering distinct advantages regarding pressure retention and assembly ease. North American equipment frequently utilizes Joint Industry Council (JIC) 37° flare fittings and O-Ring Face Seal (ORFS) designs. European machinery predominantly features British Standard Pipe (BSPP) or Deutsches Institut für Normung (DIN) 2353 24° cone profiles.

ORFS fittings have become the preferred standard for modern, leak-free high-pressure systems because they allow for zero-clearance installation, drastically reducing assembly time in tight manifolds.

Applications and Operating Conditions

The selection of a specific fitting type is intrinsically linked to the operating conditions of the machine. Mobile earthmoving equipment, which experiences severe mechanical shock and continuous pressure cycling, requires robust connections like ORFS or heavy-duty DIN profiles. Conversely, stationary industrial presses may rely on standard JIC fittings where vibration is less severe but ease of maintenance is prioritized.

For ultra-high-flow applications where threaded connections become physically impractical to torque, the industry shifts to SAE J518 flange connections. These utilize a split-clamp design to secure a flanged head against a machined port. Standard Code 61 flanges manage pressures up to 3,000 psi, while heavy-duty Code 62 flanges are engineered to sustain 6,000 psi in extreme applications like heavy marine hydraulics and primary metals manufacturing.

How to Select the Right Hydraulic Hose Fittings?

Procurement and engineering teams must utilize systematic criteria to navigate the thousands of available permutations of connection hardware. Improper selection not only jeopardizes system performance but also introduces severe liability risks regarding worker safety.

Practical Selection Steps

The industry-standard methodology for specification is the STAMPED framework: Size, Temperature, Application, Material, Pressure, Ends, and Delivery. Sizing is governed by the dash system, where one dash unit equals 1/16 of an inch; therefore, a -8 fitting corresponds to a 1/2-inch internal hose diameter. When determining pressure ratings, the entire assembly is only as strong as its weakest component.

Engineers must ensure that the maximum dynamic working pressure of the system never exceeds the rated capacity of the fitting. Furthermore, hydraulic safety standards mandate a minimum 4:1 safety factor for burst pressure versus operating pressure. If a system operates at 4,000 psi, the specified hardware must be lab-tested to withstand at least 16,000 psi before catastrophic structural failure occurs.

Standardization and Sourcing

From a supply chain perspective, standardization is a highly effective strategy for reducing total cost of ownership. By transitioning legacy systems to a single standard—such as standardizing an entire fleet on ORFS—organizations can drastically reduce inventory complexity. This consolidation often drops Minimum Order Quantities (MOQs) for custom or rare parts from 500 units down to standard off-the-shelf bulk orders, compressing lead times from months to days.

Finally, sourcing must adhere strictly to established qualification standards like ISO 12151, which governs the performance of hose and fitting combinations.

Key Takeaways

· The most important conclusions and rationale for types of hydraulic hose fittings

· Specs, compliance, and risk checks worth validating before you commit

· Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What are the main types of hydraulic hose fittings?

Common types include JIC 37° flare, ORFS, DIN 2353 24° cone, NPT, and SAE flange fittings. Each differs by thread form, sealing method, and pressure capability.

Which hydraulic fitting is best for high-vibration equipment?

ORFS is usually the best choice for high-vibration systems because the O-ring face seal resists loosening and helps prevent leaks under shock and pressure cycling.

How do I choose between JIC, ORFS, DIN, and NPT fittings?

Match the fitting to your machine standard, pressure level, vibration, and sealing needs. Never mix thread types or sealing angles, even if the threads seem to fit.

When should SAE flange fittings be used?

Use SAE flange fittings for high-flow, large-diameter, or very high-pressure lines where threaded fittings are harder to torque and seal reliably.

What seal material should I use in hydraulic hose fittings?

Use NBR for most standard hydraulic systems from about -40°C to +120°C. Choose FKM/Viton for higher temperatures or more aggressive synthetic fluids.
