Introduction
Choosing the right NPT fitting starts with measurement, not appearance. Because NPT threads are tapered, a fitting’s nominal size rarely matches its actual outside diameter, and thread count must be checked separately to confirm compatibility. This article explains how to identify NPT fittings by measuring diameter, counting threads per inch, and recognizing the role of taper in achieving a proper seal. You’ll also learn which tools—such as calipers, thread pitch gauges, and reference charts—make the process accurate and repeatable, helping you avoid mismatched connections, leaks, and damaged threads before installation.
Why Measuring NPT Fittings Matters?
Accurate identification and measurement of National Pipe Taper (NPT) fittings are essential for ensuring the structural integrity of fluid and gas conveyance systems. Governed by the ANSI/ASME B1.20.1 standard, NPT threads rely on a precise 1° 47' (1.7899°) taper angle to create a mechanical seal through thread deformation. Because this taper dictates how male and female threads interface, relying on visual estimation rather than precise measurement compromises system reliability and safety.
Common Risks of Misidentifying NPT Size
Misidentifying an NPT fitting introduces critical failure points in industrial piping systems. The most immediate risk is inadequate thread engagement, which prevents the interference fit required to achieve a proper seal. In high-pressure hydraulic or pneumatic applications operating between 3,000 PSI and 10,000 PSI, a mismatched fitting can lead to catastrophic blowouts, hazardous chemical leaks, or uncontrolled pressure drops.
Furthermore, forcing a straight thread or an incorrectly sized tapered thread into an NPT port induces severe mechanical stress. This mismatch frequently results in thread galling, stripped threads, and permanent damage to expensive manifolds, pumps, or valves, leading to costly downtime and equipment replacement.

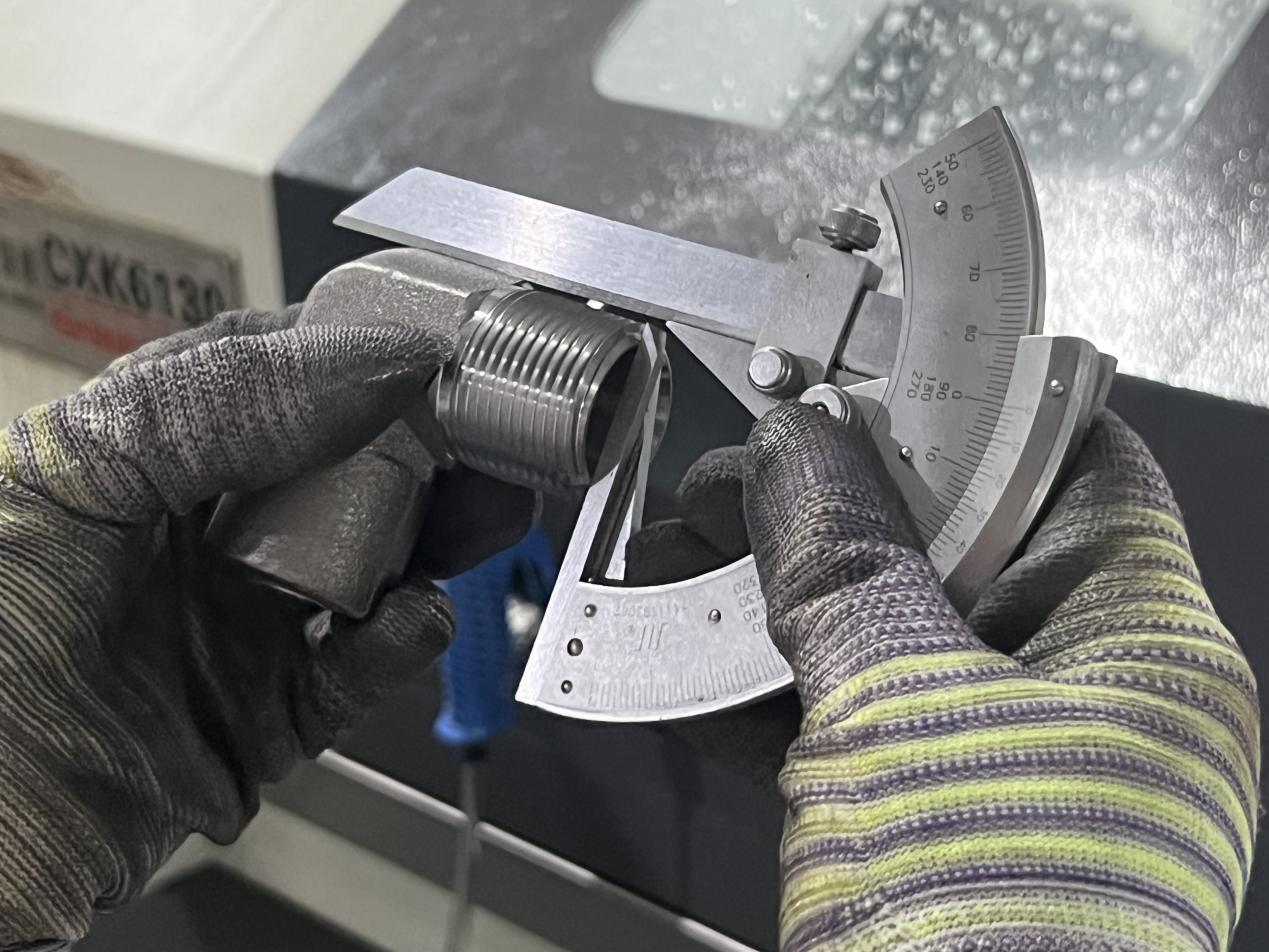

How NPT Size, Taper, and Thread Count Affect Fit?
The sealing mechanism of an NPT connection depends entirely on the interaction between the fitting's nominal size, taper, and thread count. As the fitting is tightened, the 1° 47' taper forces the thread flanks to compress against one another, eliminating spiral leak paths. However, this interference fit only functions if the Threads Per Inch (TPI) match exactly.
For example, a 1/4-inch NPT fitting features 18 TPI, whereas a slightly larger 1/2-inch NPT fitting utilizes 14 TPI. If an operator attempts to mate fittings with differing TPI or taper angles—such as confusing NPT with British Standard Pipe Taper (BSPT), which has a 55-degree thread angle instead of NPT's 60-degree angle—the threads will bind prematurely. This binding creates a false sense of tightness long before a viable, leak-proof seal is actually formed.
How to Measure NPT Fittings?

The primary challenge in measuring NPT fittings stems from the fact that nominal pipe sizes do not correspond directly to the physical outer diameter (OD) of the threads. A 1/2-inch NPT fitting, for instance, does not measure 0.500 inches across; its actual OD is approximately 0.840 inches. Consequently, technicians must rely on a systematic measurement process to translate physical dimensions into standard nominal sizes.
Key Dimensions to Check
When evaluating an unidentified NPT fitting , the critical dimensions to capture are the outer diameter for male threads or the inner diameter (ID) for female threads, alongside the thread pitch. For male fittings, measure the OD at the widest portion of the thread profile, typically at the base closest to the hex nut. For female fittings, measure the ID at the widest opening.
Comparing these raw measurements against a standard NPT dimension chart allows operators to accurately determine the nominal size.
| Nominal Size | Male Thread OD (inches) | Female Thread ID (inches) | Threads Per Inch (TPI) |
| 1/8" | 0.405 | 0.332 | 27 |
| 1/4" | 0.540 | 0.438 | 18 |
| 3/8" | 0.675 | 0.562 | 18 |
| 1/2" | 0.840 | 0.703 | 14 |
| 3/4" | 1.050 | 0.891 | 14 |
How to Match Nominal Pipe Size and Thread Pitch?
Once the OD or ID is established, the next step is verifying the thread pitch. Because different thread standards can share similar diameters, counting the threads per inch is mandatory for confirming the fitting is truly NPT. A thread pitch gauge featuring a 60-degree profile must seat perfectly into the thread grooves without any daylight visible between the gauge teeth and the fitting flanks.
If the gauge rocks or sits unevenly, the fitting may be metric or BSPT. By cross-referencing the physical diameter with the confirmed TPI—such as matching a 1.050-inch OD with a 14 TPI count—technicians can definitively identify the component as a 3/4-inch NPT fitting , ensuring safe integration into the broader piping network.
Tools and Inspection Steps

Deploying the correct measurement tools is non-negotiable when inspecting NPT fittings for compliance and compatibility. While standard shop tools can provide approximate dimensions for basic identification, verifying fittings against the strict tolerances of the ASME B1.20.1 specification requires specialized, calibrated metrology equipment.
Essential Tools for Measuring NPT Threads
A digital or dial caliper with a minimum resolution of 0.001 inches is the foundational tool for capturing the outer and inner diameters of the pipe threads. To measure the thread count accurately, technicians use standard thread pitch gauges, specifically selecting blades cut to the 60-degree NPT profile.
For rigorous quality control, particularly in manufacturing environments, operators rely on L1 ring and plug gauges. An L1 ring gauge threads onto a male fitting to verify the hand-tight engagement length, while an L1 plug gauge checks the internal threads of a female port, ensuring the taper and pitch diameters fall within acceptable engineering limits.
When to Verify Measurements with Specifications?
Standard diameter and pitch measurements suffice for routine maintenance, but rigorous verification against ASME specifications becomes mandatory in high-stakes industries like aerospace, petrochemical processing, and nuclear power. In these sectors, a dimensional defect rate exceeding even 0.1% poses unacceptable operational risks.
Technicians must use L1 gauges to confirm that the thread standoff—the distance between the end of the fitting and the gauge notch—is within the strict tolerance of +/- 1 turn. If a fitting exceeds this tolerance, it indicates that the threads are either cut too deeply or too shallowly. Installing out-of-spec fittings in environments subjected to extreme thermal cycling or constant vibration drastically increases the probability of fatigue failure, making meticulous gauge inspection a vital safety protocol.
Key Takeaways
· The most important conclusions and rationale for how to measure npt fittings
· Specs, compliance, and risk checks worth validating before you commit
· Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
Why doesn’t a 1/2-inch NPT fitting measure 1/2 inch across?
NPT uses nominal pipe size, not actual thread diameter. A 1/2-inch NPT male fitting measures about 0.840 inches OD, so always verify size with a chart.
What should I measure first on an NPT fitting?
Measure the male thread OD at the widest point near the base, or the female thread ID at the opening. Then compare that measurement to an NPT size chart.
How do I confirm the thread is truly NPT?
Check the threads per inch with a 60-degree thread pitch gauge. The gauge should seat cleanly with no rocking or visible gaps.
Can I identify NPT fittings by eye only?
No. Similar-looking threads can be NPT, BSPT, or another standard. Use calipers and a pitch gauge to confirm diameter, taper, and TPI before installation.
What happens if I use the wrong NPT fitting size?
A mismatch can cause poor thread engagement, leaks, stripped threads, or pressure failure. In fluid or gas systems, always verify size and pitch before tightening.
