NPS Threads: Specifications and Sourcing for B2B Buyers

Why NPS Threads Matter in B2B Sourcing?

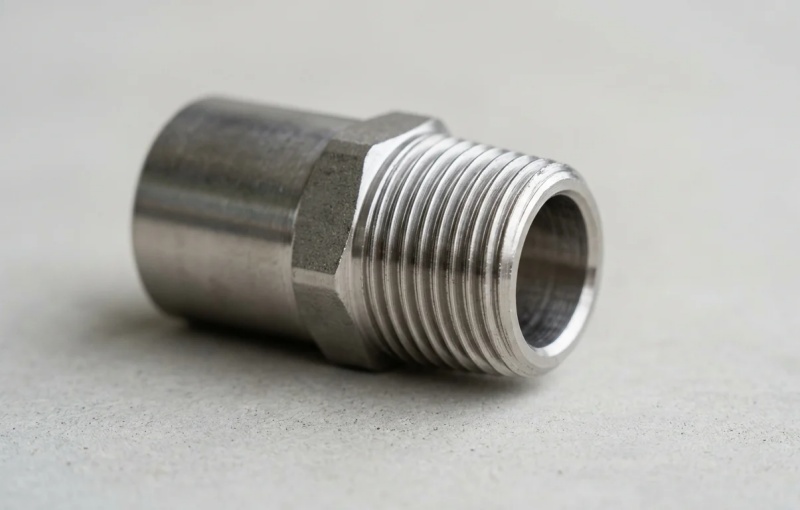

Navigating industrial procurement requires specifying the correct pipe threads as a cornerstone of reliable mechanical and fluid systems. National Pipe Straight (NPS) threads—often searched globally as "nps gewinde"—are ubiquitous in applications requiring structural support or low-pressure fluid transfer where an O-ring or gasket provides the actual seal.

Unlike tapered threads that seal by wedging together, NPS threads maintain a constant diameter. Sourcing these components requires strict adherence to dimensional tolerances, as even minor deviations can compromise an entire assembly line.

How to Define NPS Thread Requirements

When defining requirements for NPS threads, procurement teams must rely on the ASME B1.20.1 standard. It is essential to specify the nominal pipe size, the threads per inch (TPI), and the class of fit. For example, a standard 1/4-inch NPS component requires exactly 18 TPI, while a 1/2-inch fitting demands 14 TPI.

Furthermore, buyers must clearly outline the material grade, such as 316 stainless steel or brass, and surface treatments. Precision in the Request for Quotation (RFQ) ensures that manufacturers do not substitute inferior alloys that might meet dimensional specifications but fail under operational stress.

Commercial Risks of Incorrect NPS Specifications

Failing to specify NPS parameters accurately exposes procurement operations to severe commercial risks. A mismatch in thread pitch or diameter can easily lead to a batch rejection rate exceeding a standard 1.5% Acceptable Quality Limit (AQL).

Beyond the immediate loss of capital, incorrect specifications can cause assembly delays that accrue thousands of dollars in daily downtime. If a supplier defaults to a tapered thread (NPT) instead of the requested straight thread (NPS), the resulting mechanical interference will cause joint failure, severely impacting gross margins by 15% to 20% due to emergency re-sourcing and expedited shipping.

Key NPS Thread Specifications to Verify

Securing a reliable supply chain requires implementing rigorous verification protocols for NPS thread components. Buyers cannot rely solely on supplier declarations; instead, they must enforce strict dimensional checks using calibrated inspection tools before approving any mass production run.

The verification process hinges on validating the 60-degree thread angle and the specific pitch diameter. Quality control teams must ensure that the straight profile aligns perfectly with the mating parts, relying heavily on ring and plug gauges to confirm compliance.

How to Compare NPS with Similar Thread Standards

A common point of failure in international sourcing is confusing NPS with other thread standards. While NPS and NPT (National Pipe Tapered) share the same thread angle and TPI for a given size, NPT threads taper at a rate of 3/4 inch per foot, whereas NPS threads remain parallel. Additionally, buyers must distinguish NPS from BSPP (British Standard Pipe Parallel) , which uses a 55-degree thread angle.

To clarify these distinctions for engineering and purchasing teams, refer to the following comparative matrix:

Feature NPS (National Pipe Straight) NPT (National Pipe Tapered) BSPP (British Standard Pipe Parallel)

Thread Angle 60 degrees 60 degrees 55 degrees

Profile Straight / Parallel Tapered (3/4" per foot) Straight / Parallel

Sealing Method Gasket / O-ring Thread deformation / Tape Washer / Bonded seal

Common Standard ASME B1.20.1 ASME B1.20.1 ISO 228-1

Critical Inspection Points for Samples and Production

When evaluating first-article samples, the primary focus must be on the pitch diameter and the thread crests. Procurement standards mandate the use of Go/No-Go thread gauges calibrated to a Class 2A (external) or 2B (internal) fit. If a sample fails the No-Go gauge test, the pitch diameter is out of tolerance, risking a loose connection.

Furthermore, inspectors must evaluate the surface finish of the machined threads. A surface roughness of Ra 3.2 micrometers or better is typically required to prevent galling during assembly. During mass production, suppliers should perform optical comparator checks on at least 2% of every batch to ensure tool wear has not compromised the thread profile.

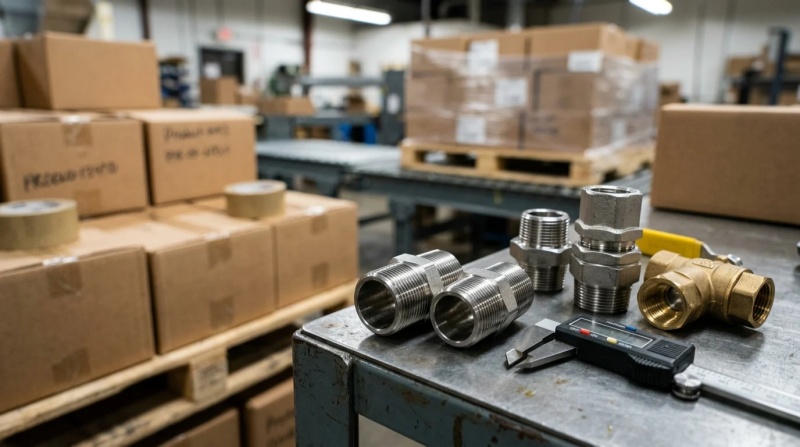

How to Source NPS Thread Products Reliably

Building a resilient supply base for NPS-threaded fittings requires looking beyond unit pricing to evaluate the holistic manufacturing capabilities of supply partners. Prioritize factories with dedicated CNC turning centers over those relying solely on manual lathes, as automation guarantees the repeatability required for high-volume orders.

An effective sourcing strategy also involves assessing the supplier's geographical advantages, raw material access, and export experience. A partner well-versed in exporting industrial hardware will proactively address compliance and packaging standards, preventing significant logistical headaches.

What to Negotiate on MOQ, Tooling, and Packaging

Effective negotiation begins with understanding the baseline economics of thread manufacturing. For standard NPS sizes in brass or carbon steel, buyers typically target Minimum Order Quantities (MOQs) between 2,000 and 5,000 pieces. However, for specialized alloys like Inconel or custom lengths, it is possible to negotiate lower MOQs around 500 pieces by offsetting the factory's setup costs with a one-time tooling fee averaging $300 to $800.

Packaging is another critical negotiation point that directly impacts yield. Because machined threads are highly susceptible to transit damage and rust, buyers should mandate the use of Volatile Corrosion Inhibitor (VCI) bags and custom blister trays. Refusing bulk-bin packaging ensures the defect rate from shipping damage remains below 0.5%.

How to Finalize Supplier Selection

To finalize supplier selection, conduct comprehensive factory audits focusing on quality management systems, specifically ISO 9001:2015 certifications. Require prospective suppliers to demonstrate a documented tool-replacement schedule, as worn cutting inserts are the leading cause of out-of-spec NPS threads.

Finally, secure favorable commercial terms to protect cash flow and ensure long-term supply chain stability.

Key Takeaways

Wholesale sourcing and supply-chain implications for nps gewinde

Specifications, compliance, and commercial terms buyers should validate

Actionable recommendations for distributors and procurement teams

Frequently Asked Questions

What does NPS thread mean in sourcing?

NPS means National Pipe Straight thread. It is a parallel pipe thread used where sealing is done by an O-ring, gasket, or washer rather than by the threads themselves.

How is NPS different from NPT?

NPS is straight, while NPT is tapered. They may share the same TPI and 60-degree angle for a size, but substituting NPT for NPS can cause fit and sealing problems.

What should I include in an RFQ for NPS parts?

Specify ASME B1.20.1, nominal size, TPI, class of fit, material grade, surface finish, and sealing method. Also require gauge inspection results and sample approval before mass production.

Which inspections are critical for NPS threaded samples?

Check pitch diameter, 60-degree thread angle, straight profile, and surface finish. Use calibrated Go/No-Go ring or plug gauges, typically to Class 2A or 2B fit requirements.

Can NPS threads seal without a gasket or O-ring?

Usually no. NPS threads are not designed to seal by thread interference alone, so specify the correct gasket, O-ring, or bonded seal in your assembly requirements.
