What Is an NPT Connector? Thread Standards and Key Uses

Introduction

NPT connectors are among the most common threaded fittings used to join pipes, valves, gauges, and equipment in fluid and gas systems, yet their tapered design and sealing method are often misunderstood. This article explains what an NPT connector is, how its thread standard works, and why it differs from straight-thread and other pipe connection types. You’ll also learn where NPT fittings are typically used, what role sealants play in preventing leaks, and what installation limits matter for safety and performance. With that foundation, the rest of the article can make thread identification, specification, and application choices much easier.

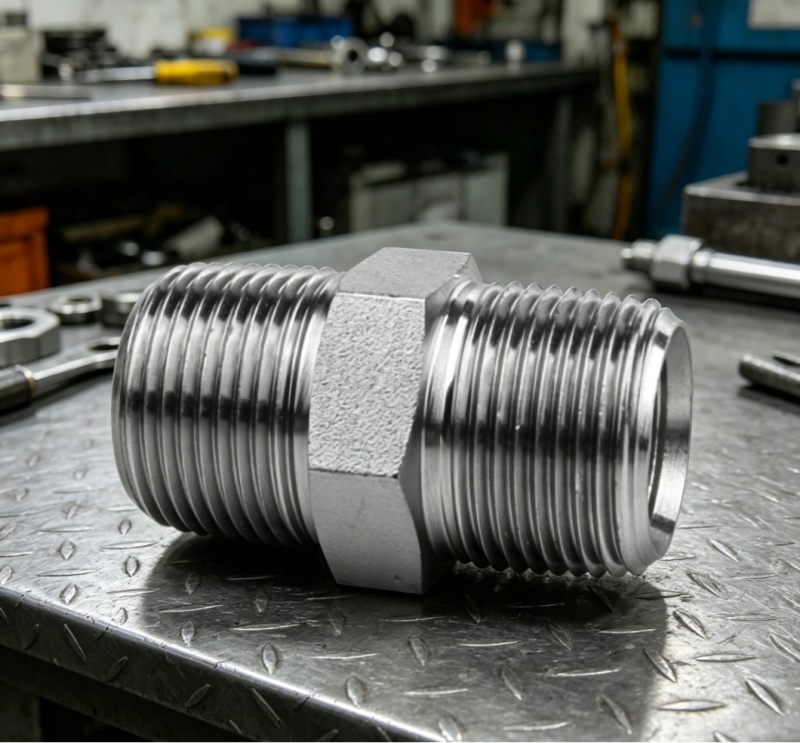

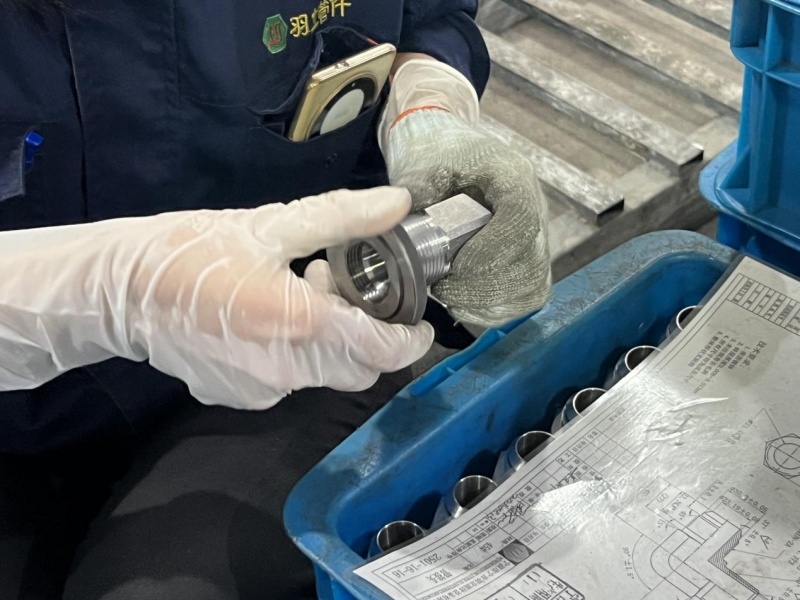

What Is an NPT Connector and Where Is It Used

National Pipe Taper (NPT) connectors represent a foundational component in fluid routing, providing a standardized mechanical joint for transferring liquids and gases under pressure. Governed primarily by the ANSI/ASME B1.20.1 specification, these fittings rely on a precisely machined geometry to achieve both structural integrity and a fluid-tight seal in industrial infrastructure.

How NPT Threads and Tapered Sealing Work

The defining characteristic of an NPT connector is its taper angle, engineered at exactly 1° 47' (approximately 1.7899 degrees) relative to the center axis. As the male and female threads are engaged and torqued, the tapered profiles wedge together, creating an interference fit at the thread flanks. Unlike straight threads that rely on O-rings or bonded washers for sealing, NPT threads form a primary seal through this mechanical deformation.

However, because microscopic clearance gaps remain at the crests and roots of the threads, a spiral leak path inherently exists. Consequently, engineers must specify a thread sealant, such as high-density PTFE tape or an anaerobic liquid compound, to fill these voids and prevent fluid bypass. If over-torqued, the extreme wedging effect can split female castings, particularly in brittle materials like cast iron or lower-grade aluminum.

Common Applications in Hydraulics, Pneumatics, and Process Systems

NPT connectors see ubiquitous deployment across pneumatics, low-to-medium pressure hydraulics, and general process piping. In industrial compressed air systems operating between 100 and 150 psi, standard brass NPT fittings offer rapid assembly and reliable performance. For hydraulic return lines or industrial fluid transport, carbon steel or 316 stainless steel NPT connectors routinely handle operational pressures ranging from 1,000 to 3,000 psi.

Operating temperatures also dictate material suitability. While standard brass handles up to 400°F (204°C), carbon steel and stainless steel variants can maintain structural integrity in environments exceeding 500°F (260°C). Although highly versatile, engineers typically avoid standard NPT connections in high-vibration environments or extreme-pressure hydraulic circuits exceeding 5,000 psi, as continuous stress exacerbates the risk of port expansion or cracking over extended operational lifecycles.

How Do NPT Standards and Alternatives Affect Connector Selection

Selecting the appropriate threaded connector requires a rigorous understanding of global thread standards, as mismatched geometries can lead to catastrophic blowouts, stripped threads, or insidious leaks. While NPT remains the dominant standard in North America, international supply chains frequently introduce alternative profiles that demand careful identification prior to integration.

NPT vs NPTF vs BSPT vs BSPP

The most critical distinction within the National Pipe thread family is between standard NPT and NPTF (National Pipe Taper Fuel, or Dryseal). Governed by the ANSI/ASME B1.20.3 standard, NPTF threads maintain the exact same 60-degree thread angle and 1° 47' taper as standard NPT, but feature adjusted crest and root truncations. This specific geometry forces the crests to crush into the roots during assembly, theoretically eliminating the spiral leak path and removing the strict requirement for thread sealant.

Internationally, procurement teams must differentiate NPT from British Standard Pipe Tapered (BSPT). While both are tapered, BSPT utilizes a 55-degree thread angle. Attempting to mate a 1/2-inch NPT male (14 threads per inch) with a 1/2-inch BSPT female (14 threads per inch) will result in thread binding and inevitable leakage due to the incompatible flank angles.

Key Dimensions and Performance Factors

Sizing NPT connectors introduces a common engineering pitfall: Nominal Pipe Size (NPS) does not correspond to the actual measured outer diameter (OD) of the threads. For example, a 1/4-inch NPT fitting actually measures approximately 0.54 inches in outer diameter, while a 1-inch NPT fitting measures 1.315 inches. Procurement teams must verify the Threads Per Inch (TPI) count and the outer diameter using precision calipers before specifying replacements. Misidentifying these parameters often leads to cross-threading during assembly, making a thread pitch gauge and a comprehensive reference chart indispensable tools for maintenance and engineering departments.

How Should Buyers Specify, Install, and Source the Right NPT

Effective integration of NPT connectors requires stringent oversight during both the procurement and assembly phases. Over-torquing, improper material selection, and inadequate supply chain vetting frequently compromise system reliability and inflate long-term lifecycle costs.

Practical Steps for Specification and Installation

Installation of tapered threads relies heavily on the Turns From Finger Tight (TFFT) methodology rather than strict torque limits, as friction coefficients vary wildly depending on the chosen sealant and base material. Standard industry practice dictates engaging the fitting until finger-tight, followed by 1.5 to 3 full wrench turns to achieve optimal interference without permanently distorting the female port.

When specifying 304 or 316 stainless steel NPT connectors, installation technicians must apply high-quality nickel-based anti-seize or specialized high-density PTFE tape. Stainless steel is highly susceptible to thread galling—a form of cold welding where friction causes the thread flanks to fuse and tear during assembly. Utilizing a thread sealant with dedicated lubricating properties mitigates this risk and ensures the fitting can be safely dismantled during future maintenance cycles.

Procurement and Engineering Selection Criteria

Procurement teams must align connector metallurgy with system pressure, media corrosivity, and the ambient environment.

Key Takeaways

· The most important conclusions and rationale for what is npt connector

· Specs, compliance, and risk checks worth validating before you commit

· Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What is an NPT connector?

An NPT connector is a tapered threaded fitting used to join pipes and ports for liquids or gases. It seals by thread interference and usually needs PTFE tape or liquid thread sealant.

How does an NPT thread seal?

NPT threads seal as the male and female tapered threads wedge together during tightening. Because tiny gaps remain, apply a suitable thread sealant to prevent leaks.

Where are NPT connectors commonly used?

They are common in compressed air lines, process piping, and low-to-medium pressure hydraulic return or fluid transfer systems, especially in North American equipment.

Can NPT and BSPT threads be used together?

No. Even if the size looks similar, NPT uses a 60° thread angle and BSPT uses 55°. Mixing them can cause binding, leaks, or thread damage.

How do I identify the correct NPT size?

Measure the thread outside diameter and count threads per inch with a pitch gauge. Do not rely on the nominal name alone, since NPT sizes do not match actual thread OD.
