ORFS Fitting Size Chart: Thread, Tube, and Dash Size Reference

Introduction

Choosing the correct ORFS fitting depends on more than matching parts by eye. Thread dimensions, tube outside diameter, and dash size must align precisely to maintain the O-ring face seal and prevent leaks in hydraulic systems. This ORFS fitting size chart explains how those measurements relate, what common SAE J1453 sizing terms mean, and how to use them when identifying or replacing fittings. By the end, you’ll be able to read the chart confidently, distinguish thread size from tube size, and make faster, more accurate selections for maintenance, troubleshooting, or system design.

Why an ORFS fitting size chart matters

O-Ring Face Seal (ORFS) fittings, standardized under SAE J1453, represent a premier solution for leak-free fluid conveyance in high-vibration, high-pressure hydraulic applications. Engineered to eliminate the leakage issues common with traditional metal-to-metal seals, ORFS configurations operate reliably at dynamic pressures up to 6,000 psi (414 bar).

Navigating the specifications of these connections requires an accurate ORFS fitting size chart. Such reference materials bridge the gap between theoretical engineering parameters and practical assembly, ensuring that engineers and technicians select components with the exact tolerances required to maintain system integrity.

Key ORFS terms to define first

Mastering ORFS specifications requires a firm grasp of the standard terminology utilized across hydraulic component manufacturing. The 'dash size' is the foundational metric, indicating the nominal outer diameter (OD) of the mating tubing in sixteenths of an inch. For example, a -8 dash size corresponds to a 1/2-inch tube OD.

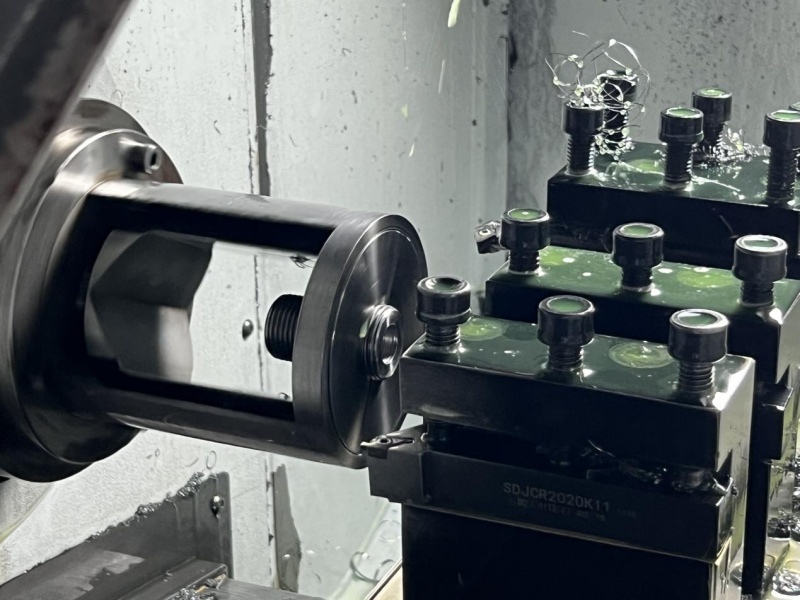

Additionally, ORFS systems utilize Unified National Fine (UNF) or Unified National (UN) straight threads. Unlike tapered pipe threads, these straight threads do not form the fluid seal; they merely provide the mechanical holding power. The actual fluid boundary is maintained by an elastomeric O-ring—typically manufactured from 90 Durometer Nitrile or Fluorocarbon—seated precisely within a machined groove on the flat face of the male fitting.

How to frame size selection for hydraulic systems

Selecting the correct size requires evaluating both the volumetric flow demands of the hydraulic circuit and the mechanical stresses placed upon the joints. An undersized fitting induces excessive fluid velocity, leading to turbulent flow, heat generation, and potential cavitation, while an oversized fitting adds unnecessary weight, cost, and bulk to the system architecture.

Engineers must also account for the structural safety margins inherent to SAE J1453 standards. Proper sizing ensures that the connection maintains a minimum 4:1 burst pressure safety factor under maximum operational loads. Furthermore, the flat-face design of ORFS allows for zero-clearance assembly, meaning components can be dropped into or removed from tight manifolds without springing or manipulating the adjacent rigid tubing. Accurate chart utilization ensures that the selected thread pitches and dash sizes align perfectly with these zero-clearance spatial constraints.

How to read an ORFS fitting size chart

An ORFS fitting size chart acts as a cross-reference matrix, translating standard dash sizes into precise thread specifications and geometric dimensions. Interpreting this data correctly is paramount for component interchangeability and system maintenance.

Most industrial charts organize data by ascending dash sizes, aligning each increment with its corresponding thread pitch, nominal tube diameter, and standard O-ring designation, thereby eliminating guesswork during the procurement and specification process.

How thread size, dash size, and dimensions relate

The relationship between dash size, tube OD, and thread specifications follows a strict mathematical progression governed by SAE standards. The thread size is denoted by the outer diameter of the male thread followed by the threads per inch (TPI).

This standardized relationship guarantees that a -8 ORFS fitting will universally feature a 13/16-16 thread and accept a size 014 O-ring, regardless of the original equipment manufacturer. This uniformity is critical for reverse engineering and replacing worn components in the field.

How ORFS charts differ from other fitting standards

Distinguishing an ORFS chart from reference materials for other standards, such as JIC 37-degree flare (SAE J514) or SAE 45-degree flare, requires attention to the specific sealing mechanism. While JIC and ORFS may occasionally share similar thread pitches for certain dash sizes, their geometries and sealing principles are mutually exclusive.

JIC fittings rely on metal-to-metal contact at a 37-degree angle to create a seal, demanding higher torque values that can lead to nose collapse if overtightened. Conversely, ORFS charts account for flat-face O-ring compression. Because the seal is elastomeric rather than mechanical, ORFS fittings typically require 15% to 20% less assembly torque than equivalent JIC connections to achieve a reliable, leak-free joint. Consequently, charts for ORFS will explicitly list the required O-ring dash size—a critical column entirely absent from metal-to-metal flare reference tables.

How to use an ORFS fitting size chart in practice

Translating chart data into physical application demands rigorous measurement protocols. Relying on visual estimation or outdated schematics frequently results in mismatched threads, extruded O-rings, or catastrophic blowouts under high-pressure cycling.

Technicians and engineers must employ precision metrology tools to verify field components against the published ORFS fitting size chart, ensuring absolute dimensional conformance before applying hydraulic pressure to the circuit.

Steps to verify thread and fitting size

Accurate verification begins with a calibrated digital or dial caliper capable of reading to within 0.001 inches. To identify an unknown male fitting, measure the outer diameter of the threads at their widest point. Next, utilize a precision thread pitch gauge to determine the exact number of threads per inch (TPI).

For example, if the caliper indicates an outer diameter of approximately 1.000 inch and the pitch gauge nests perfectly into 14 threads per inch, the chart confirms a 1-14 thread, corresponding to a -10 dash size. It is equally important to inspect the O-ring groove depth and width. A severely worn or out-of-tolerance groove—deviating by more than 0.005 inches from the SAE J1453 specification—will fail to provide the calculated volumetric fill for the elastomer, leading to extrusion or bypass leakage regardless of correct thread sizing.

Key Takeaways

· The most important conclusions and rationale for orfs fitting size chart

· Specs, compliance, and risk checks worth validating before you commit

· Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What does ORFS dash size mean?

Dash size shows the tube OD in sixteenths of an inch. Example: -8 means 8/16, or 1/2-inch tube OD.

How do I match an ORFS dash size to thread size?

Use the chart to cross-reference dash size, tube OD, and UN/UNF thread. For example, -8 matches 1/2-inch tube OD and 13/16-16 thread.

Can I interchange ORFS and JIC fittings?

No. Even when thread sizes look similar, ORFS seals with an O-ring on a flat face, while JIC seals on a 37-degree metal flare.

What O-ring size is used for a -6 ORFS fitting?

A -6 ORFS fitting typically uses O-ring size 012. Verify material compatibility, such as Nitrile or Fluorocarbon, for your fluid and temperature.

Why is correct ORFS sizing important in hydraulic systems?

Correct sizing helps prevent leaks, excess heat, and pressure loss. It also supports reliable performance in high-vibration, high-pressure systems up to 6,000 psi.
