Types of Pipe Flanges: Selection Criteria for Projects

Introduction

In industrial piping, flange choice affects far more than how two pipe sections are joined. The right design can improve sealing performance, simplify inspection, reduce fabrication effort, and help control material costs across a project. This article explains the main types of pipe flanges used in process, utility, and high-pressure systems, including where each type is typically applied and what trade-offs engineers should consider. Readers will gain a practical framework for comparing flange geometry, pressure service, installation method, maintenance access, and lifecycle reliability before moving into detailed selection criteria.

Pipe Flange Types and Project Impact

The specification of various types of pipe flanges dictates the structural integrity, maintenance accessibility, and leak-tightness of industrial piping networks. Selecting the correct flange geometry impacts fabrication time, non-destructive examination (NDE) requirements, and lifecycle reliability. For large-scale projects, flange procurement can account for a significant portion of the piping materials budget, making optimal selection a priority for both design engineers and procurement teams.

What Pipe Flanges Are

Pipe flanges are forged or cast rings designed to connect pipe sections mechanically, allowing for disassembly without cutting. They rely on controlled bolt tension—typically torqued to achieve 50% to 70% of the fastener's minimum yield strength—to compress a gasket and create a fluid-tight seal. The mechanical joint must withstand internal pressure, thermal expansion, and external piping loads without experiencing gasket blowout or fugitive emissions. Achieving this delicate structural balance requires precise alignment; even a rotational misalignment of 0.5 degrees can induce severe localized stress on the gasket, compromising the seal and accelerating wear.

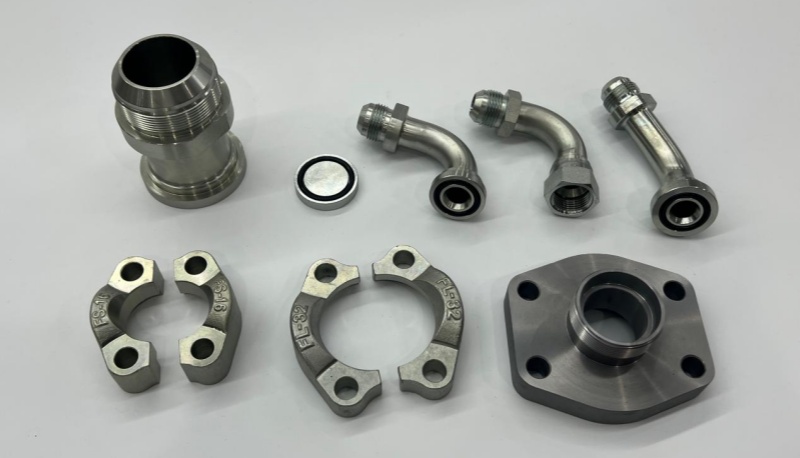

Key Flange Types to Know

Engineers must differentiate between foundational flange geometries to optimize system design. Weld Neck (WN) flanges feature a tapered hub that transitions stress to the pipe wall, making them suitable for severe, high-cycle conditions and pressure ratings up to ASME Class 2500. Slip-On (SO) flanges slide over the pipe and require dual fillet welds; they are generally restricted to lower-stress applications (ASME Class 150 to 300) due to a calculated fatigue life roughly one-third that of a WN flange. Blind flanges seal the ends of piping systems and must resist high bending stresses at the center.

Socket Weld (SW) flanges are typically reserved for small-bore piping (NPS 2 and smaller) where internal welding is impractical. Additionally, Lap Joint flanges are paired with stub ends to allow the backing ring to rotate freely, offering a massive advantage in aligning bolt holes on large-diameter or rigid piping systems. Finally, Threaded flanges provide a non-welded solution for highly explosive environments where hot work is strictly prohibited.

Comparing Flanges by Service Requirements

Matching flange geometry to process conditions requires strict adherence to international standards and metallurgical constraints. The operational envelope of a piping system is directly governed by the flange's ability to maintain a seal under dynamic fluid conditions, fluctuating thermal cycles, and corrosive attacks.

Pressure, Temperature, and Standards

Pressure-temperature (P-T) ratings dictate flange performance limits. Under ASME B16.5 (for NPS 1/2 through NPS 24) and ASME B16.47 (NPS 26 through NPS 60), flanges are categorized into pressure classes ranging from Class 150 to Class 2500. API 6A standards govern wellhead equipment with even higher ratings, reaching up to 20,000 psi. A flange's maximum allowable working pressure decreases as the design temperature increases. For example, an ASTM A105 carbon steel Class 150 flange is rated for 285 psig at 100°F, but derates to 200 psig at 400°F.

Cryogenic applications introduce another constraint; standard carbon steels become dangerously brittle below -20°F, necessitating the use of specialized low-temperature carbon steel (LTCS) or austenitic stainless steel to maintain impact toughness.

Materials, Corrosion, and Gasket Compatibility

Material specification must address both the corrosive nature of the process fluid and the mechanical interaction with the gasket. Standard carbon steel is cost-effective but susceptible to galvanic and chemical corrosion, whereas austenitic stainless steels (ASTM A182 F316/F316L) or duplex alloys (UNS S31803) offer superior resistance in aggressive environments.

The flange face finish is equally critical for gasket compatibility. Spiral wound gaskets require a serrated concentric or phonographic finish with a surface roughness between 125 and 250 microinches Ra to properly grip the gasket material. Conversely, Ring Type Joint (RTJ) flanges, used in high-pressure services exceeding Class 600, demand a much smoother groove finish—typically 63 microinches Ra maximum—to ensure a flawless metal-to-metal seal with the octagonal or oval ring gasket.

Practical Flange Selection Workflow

Establishing a rigorous procurement and specification workflow ensures that the chosen types of pipe flanges align with both safety mandates and budgetary constraints. A systematic approach prevents costly field modifications and mitigates the risk of catastrophic joint failure during plant commissioning.

Step-by-Step Engineering Checks

The specification process begins by defining the nominal pipe size (NPS) and the required pipe schedule to match the inner diameter of Weld Neck flanges. A mismatch here creates a step inside the pipe, inducing turbulent flow and localized erosion. Next, engineers calculate the necessary pressure class based on maximum design temperature and pressure combinations, referencing ASME P-T tables.

Facing selection follows; Raised Face (RF) geometries are standard for most process lines, while Flat Face (FF) designs are mandatory when mating to brittle cast iron equipment (like pump casings) to prevent bending moments that could fracture the cast iron during bolt tightening. Finally, engineers must verify that the selected bolt material (such as ASTM A193 B7) provides sufficient yield strength to maintain gasket seating stress under hydrotest conditions, which typically reach 1.5 times the system's design pressure.

Final Selection and Risk Review

The final review phase focuses on risk mitigation and quality assurance. For critical applications involving lethal or highly flammable fluids, engineers default to Weld Neck configurations to allow for 100% volumetric non-destructive examination (NDE), such as radiographic testing (RT) or ultrasonic testing (UT), of the butt weld. Slip-On flanges, with their dual fillet welds, are notoriously difficult to radiograph and are thus excluded from severe service.

Facility owners must also consider fugitive emissions compliance; improperly specified flange faces or ad-hoc bolting procedures can lead to volatile organic compound (VOC) leaks exceeding regulatory thresholds of 100 parts per million by volume (ppmv).

Key Takeaways

· The most important conclusions and rationale for types of pipe flanges

· Specs, compliance, and risk checks worth validating before you commit

· Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

Which pipe flange type is best for high-pressure service?

Use weld neck flanges for high-pressure, high-temperature, or cyclic service because the tapered hub reduces stress concentration and supports higher ASME pressure classes.

When should slip-on flanges be selected?

Choose slip-on flanges for low-pressure, lower-stress lines where easy fit-up and lower fabrication cost matter more than fatigue resistance.

What standards define pipe flange pressure ratings?

Use ASME B16.5 for NPS 1/2 to NPS 24, ASME B16.47 for NPS 26 to NPS 60, and API 6A for high-pressure wellhead applications.

Why are lap joint flanges useful on large piping systems?

Lap joint flanges allow the backing ring to rotate, making bolt-hole alignment easier on large-diameter or rigid piping where adjustment is difficult.
