Hydraulic Adapters Fittings: Standards and Selection Guide

A small adapter can decide whether a hydraulic system runs cleanly for years or fails under pressure in minutes. In fluid power circuits, hydraulic adapter fittings do more than connect mismatched ports; they control sealing integrity, pressure capability, flow efficiency, and serviceability across global equipment standards. Selecting the wrong thread, cone angle, seal material, or pressure rating can lead to leaks, aeration, overheating, and dangerous blowouts—especially in mobile machinery where vibration and pressure spikes are routine. This guide explains the major fitting standards, practical selection criteria, and operating conditions engineers and maintenance teams should verify before specifying or replacing an adapter.

Why Standards Matter for Hydraulic Adapter Fittings

Hydraulic adapter fittings serve as the critical transitional interfaces within fluid power architectures, bridging dissimilar ports, hoses, and manifold blocks. Strict adherence to international engineering standards mitigates catastrophic blowout risks, prevents fluid aeration, and standardizes maintenance protocols across global supply chains. When engineering a hydraulic circuit, utilizing standardized adapters ensures predictable flow characteristics and minimizes pressure drops that could otherwise degrade overall system efficiency.

Definitions and application boundaries

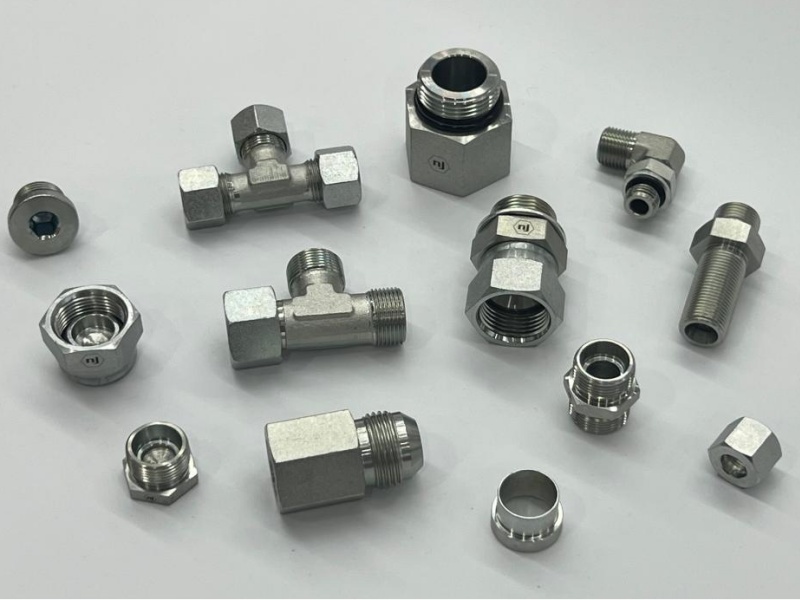

In fluid power systems, adapter fittings are connectors that change thread types, sealing methods, or tube sizes. While they often maintain a straight path, they also frequently alter fluid direction or split flow through standard elbow, tee, and cross configurations. Their application boundaries are dictated by the mating components; utilizing an adapter outside its designated standard envelope introduces mechanical stress concentrations. For instance, attempting to mate a metric DIN tube with a mismatched imperial port without a certified adapter compromises the structural integrity of the joint, often leading to micro-fractures in the fitting body under cyclic loading. Furthermore, chaining multiple adapters in series should be treated as a last resort rather than a standard design practice. Minimizing adapter count is essential for leak prevention, as excessive transitional points and cumulative tolerance stack-up exponentially increase the probability of failure.

Key operating conditions: pressure, fluid, temperature, and vibration

Operating envelopes dictate the physical requirements of hydraulic adapters. Dynamic pressure spikes frequently exceed 6,000 PSI (414 bar) in heavy earthmoving equipment, demanding high-tensile forged steel components rather than extruded brass. Fluid compatibility directly influences elastomeric seal selection; standard NBR (Nitrile) O-rings degrade rapidly above 100°C, whereas FKM (Viton) seals maintain integrity up to 200°C in aggressive synthetic hydraulic fluids. Furthermore, high-frequency mechanical vibration—often exceeding 50 Hz in mobile hydraulics—requires adapters with mechanically retained seals or specific torque-prevailing thread geometries to prevent catastrophic loosening over the machine's lifecycle. Peak flow rates must also be calculated, as undersized adapters induce turbulent flow, raising fluid temperatures and accelerating system wear.

Standards and Comparison Criteria

The global hydraulic component market relies on a fractured but highly codified landscape of regional and international standards. Selecting the correct hydraulic adapter fittings requires navigating these specifications to ensure interoperability between legacy machinery and modern fluid power systems. Without standardized geometries, cross-border equipment maintenance would be logistically impossible.

SAE, ISO, DIN, BSP, JIC, ORFS, and NPT basics

The primary fluid power standards encompass SAE, ISO, DIN, BSP, JIC, ORFS, and NPT architectures. Joint Industry Council (JIC) fittings utilize a 37-degree flare seating surface (SAE J514) and are ubiquitous in North American mobile equipment. O-Ring Face Seal (ORFS) fittings (SAE J1453) eliminate leak paths using a captive elastomer seal, making them ideal for high-vibration applications. European systems predominantly employ DIN 2353 standards featuring a 24-degree cone, while British Standard Pipe (BSP) relies on a 60-degree cone. When working with BSP, it is critical to distinguish between BSPP (parallel threads that seal via an O-ring or bonded washer) and BSPT (tapered threads that seal via thread deformation) to prevent misidentification. National Pipe Thread (NPT) remains in legacy systems but is increasingly deprecated for high-pressure hydraulics due to its reliance on thread deformation for sealing.

Thread form, sealing method, pressure rating, and material compatibility

Thread form and sealing methodology dictate the ultimate pressure rating and reliability of the adapter. Metal-to-metal seals, such as JIC 37-degree flares, are highly susceptible to overtightening, which can crush the flare and reduce the pressure rating. Conversely, ORFS connections provide superior leak resistance up to 6,000 PSI (414 bar) because the elastomeric seal absorbs micro-movements. NPT threads, while common, are often derated in sizes exceeding 1/2 inch due to the inherent spiral leak path, though specific derating limits vary by manufacturer, material grade, and operating environment. Material compatibility also plays a critical role; carbon steel adapters must meet specific plating standards, such as ISO 9227 for salt spray resistance. Depending on the environment's severity, these requirements can range from 72 hours to over 720 hours to red rust to survive highly corrosive marine or mining conditions.

How to Select and Qualify Hydraulic Adapter Fittings

Specifying hydraulic adapter fittings demands a systematic approach to dimensional verification and vendor quality assurance. Assuming compatibility based on visual inspection alone frequently results in cross-threading, seal extrusion, and costly system downtime. Robust procurement protocols protect the entire fluid power investment.

Port identification and fit verification steps

Accurate port identification is the foundational step in fit verification. Technicians must utilize precision calipers to measure the thread outer diameter (OD) and inner diameter (ID) to the nearest 0.01 mm, alongside a thread pitch gauge to determine threads per inch (TPI) or metric pitch. Seat angles must be verified using specialized angle gauges, as visually distinguishing between a 37-degree JIC flare and a 45-degree SAE flare is virtually impossible. Once the geometry is mapped, engineers should cross-reference the data against established thread charts to confirm the exact standard before specifying the corresponding adapter. Modern best practices also require verifying the physical stampings or laser etchings on the fitting body, which indicate the manufacturer's trace code and standard conformance. Furthermore, practical installation caveats must be observed: technicians must follow strict torque protocols, avoid applying thread sealants where restricted (e.g., no sealant on ORFS O-ring faces), and recognize the critical risk of joint failure if visually similar standards like 37° JIC and 45° SAE are intermixed.

Key Takeaways

· Match hydraulic adapter fittings to the correct standard—SAE, ISO, DIN, BSP, JIC, ORFS, or NPT—to ensure proper thread engagement and sealing.

· Use high-tensile forged steel adapters for severe-duty systems where pressure spikes can exceed 6,000 PSI or 414 bar.

· Select seal materials based on fluid and temperature, using NBR for moderate conditions and FKM where temperatures may approach 200°C.

· Minimize the number of adapters in a hydraulic circuit because each extra transition increases leak risk, pressure loss, and tolerance stack-up.

· Choose ORFS fittings for high-vibration or leak-sensitive applications because their captive O-ring face seal helps maintain sealing integrity.

· Verify flow capacity before installation because undersized adapters can create turbulence, heat buildup, and accelerated component wear.

Frequently Asked Questions

What are hydraulic adapter fittings used for?

Hydraulic adapter fittings connect dissimilar ports, hoses, tubes, or manifold blocks by changing thread type, sealing method, size, or flow direction while maintaining a safe fluid path.

Why do hydraulic fitting standards matter?

Standards such as SAE, ISO, DIN, BSP, JIC, ORFS, and NPT define geometry, threads, and sealing surfaces so components fit correctly, reduce leak risk, and support reliable maintenance across equipment types.

What is the difference between JIC and ORFS fittings?

JIC fittings use a 37-degree metal flare seat, while ORFS fittings use a captive O-ring face seal. ORFS is often preferred for high-vibration or leak-sensitive systems.

Can multiple hydraulic adapters be chained together?

Chaining adapters should be avoided whenever possible because each additional joint adds leak points, tolerance stack-up, pressure loss, and mechanical stress under vibration or cyclic loading.

How do pressure and temperature affect adapter selection?

High pressure may require forged steel rated for spikes above 6,000 PSI, while temperature affects seal choice; NBR is limited near 100°C, whereas FKM can withstand temperatures up to about 200°C.
