O-Ring Face Seal Fittings: Standards and Sealing

Introduction

O-ring face seal fittings are widely used in hydraulic and fluid power systems because they combine high pressure capability with reliable, leak-resistant sealing in demanding service. Instead of depending on tapered threads or flare deformation, they seal by compressing an O-ring between two flat mating surfaces, which improves consistency and simplifies assembly. This article explains how that sealing method works, which standards govern dimensions and interchangeability, and what design, material, and installation factors most affect pressure performance and long-term reliability. With that foundation, the body can examine where ORFS fittings excel, where failures begin, and how to specify them correctly.

How Do O-Ring Face Seal Fittings Work?

In my experience designing and troubleshooting high-pressure fluid power systems, O-ring face seal (ORFS) fittings represent the gold standard for leak-free performance in high-vibration environments. Unlike traditional tapered threads or flared fittings, the ORFS design relies on a highly controlled elastomeric compression mechanism rather than metal-to-metal deformation.

I consistently specify these fittings when zero-clearance assembly is required. Because the sealing faces are flat, they allow us to drop components directly into a piping run without springing or distorting the adjacent tubing, vastly simplifying both initial installation and long-term maintenance.

What defines O-ring face seal fittings?

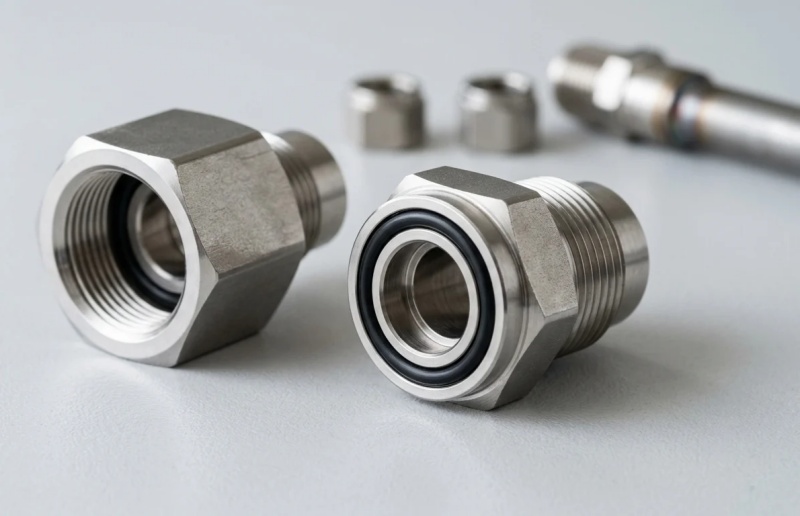

The fundamental architecture of an ORFS fitting centers on a precision-machined groove located on the flat face of the fitting body. This groove captures an elastomeric O-ring, which mates against a completely flat sleeve or flanged tube end.

When the nut is tightened, it draws the flat face against the O-ring, compressing it until the metal faces achieve solid contact. This metal-to-metal bottoming out provides highly tactile feedback during assembly and effectively prevents over-compression of the seal. In standard hydraulic applications, I rely on this precise mechanical stop to continuously hold dynamic pressures up to 6,000 psi (414 bar) without weeping or degradation.

Which variables affect seal reliability and pressure capacity?

Several critical variables dictate the ultimate reliability and pressure capacity of these connections. The most crucial factor I monitor is the O-ring compression, or squeeze, which typically must fall between 15% and 30% of the elastomer's cross-sectional diameter. If the squeeze drops below this threshold, the seal will inevitably fail at lower temperatures when the elastomer contracts.

Conversely, excessive volumetric fill can cause the O-ring to extrude or shear under dynamic pressure spikes. Furthermore, while the metal-to-metal contact prevents over-compression of the elastomer, applying torque beyond 150% of the manufacturer's specified rating will yield the threads or distort the flat mating face, creating a mechanical failure path that compromises the entire assembly.

What Standards, Dimensions, and Materials Should I Compare?

When I evaluate ORFS fittings for a new hydraulic manifold or routing system, I cannot rely on visual similarity alone. The global fluid power industry operates under strict standardization frameworks, primarily governed by SAE and ISO, which dictate the exact dimensional profiles and material allowances.

Navigating these specifications ensures that components sourced from different geographic regions or manufacturers will mate perfectly without compromising the seal's structural integrity or pressure rating.

How do specification families, groove geometry, and tolerances differ?

The two predominant specification families I work with are SAE J1453 and ISO 8434-3. While they are highly similar and often fully interchangeable, strict attention to dimensional tolerances at the manufacturing level is mandatory.

For instance, the O-ring groove depth tolerances in SAE J1453 are aggressively held within ±0.002 inches (0.05 mm). I insist on this tight tolerance from suppliers because it ensures predictable O-ring volume fill, which should occupy roughly 75% to 85% of the groove's void space. If the groove is machined too shallow, the elastomer lacks the expansion space required during thermal cycling, leading to premature extrusion and catastrophic pressure loss.

Which materials, elastomers, and surface finishes should I evaluate?

Material selection directly dictates both the chemical compatibility and the operational lifecycle of the joint. For standard industrial machinery, I typically specify carbon steel fittings, but I strictly require the mating flat face to exhibit a maximum surface roughness of 63 µin Ra (1.6 µm Ra) to prevent micro-leakage pathways.

When selecting the elastomer, I default to 90-durometer Nitrile (NBR) for standard hydraulic fluids operating between -40°C and 120°C. However, for systems utilizing synthetic phosphates or operating in high-ambient environments, I upgrade to Fluorocarbon (FKM), which reliably pushes the continuous thermal ceiling to 204°C while resisting aggressive chemical degradation.

How Should I Specify, Source, and Verify O-Ring Face Seal?

Transitioning from engineering theory to procurement requires a rigorous approach to specification and supplier vetting. I have found that the most exquisitely designed ORFS system will still fail if the supply chain introduces substandard machining or if assembly technicians lack proper installation discipline.

Therefore, I structure my sourcing and verification protocols around quantifiable performance metrics and strict quality assurance gates to eliminate systemic vulnerabilities.

What comparison criteria belong in a sourcing table

When compiling a sourcing table to compare potential ORFS suppliers, I isolate the variables that directly impact total cost of ownership and field reliability. I always evaluate baseline material capabilities against high-performance alternatives to ensure the selected fitting aligns with the specific operational environment.

Below is a framework I use to compare standard industrial ORFS components against high-performance offshore variants:

How do inspection, installation discipline, and supplier qualification affect performance

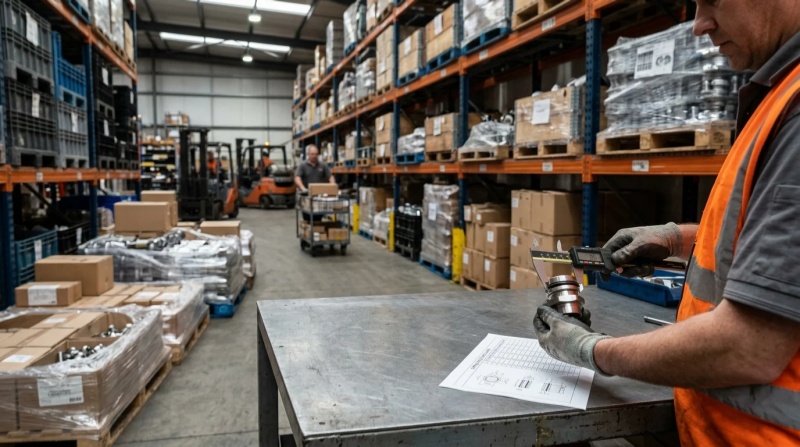

Even with premium components secured, my final line of defense is rigorous inspection and installation discipline. I train assembly teams to conduct a tactile and visual inspection of the captive groove; a single burr or machining chatter mark can slice the O-ring during initial compression.

During assembly, I mandate the use of system-compatible lubricants on the O-ring to prevent twisting or tearing as the nut is tightened to its final torque value.

Key Takeaways

· The most important conclusions and rationale for o ring face seal fittings

· Specs, compliance, and risk checks worth validating before you commit

· Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What makes O-ring face seal fittings different from flare or tapered-thread fittings?

ORFS fittings seal by compressing an O-ring between two flat faces, not by thread interference or metal flare deformation. This gives more reliable leak-free performance in high-pressure, high-vibration hydraulic systems.

Which standards should I check when comparing ORFS fittings?

Focus on SAE J1453 and ISO 8434-3. These standards define key dimensions and tolerances so fittings from qualified suppliers can mate correctly and maintain sealing performance.

What pressure can ORFS fittings typically handle?

In standard hydraulic applications, properly specified ORFS fittings commonly handle pressures up to 6,000 psi (414 bar). Actual limits depend on size, material, O-ring, and manufacturer ratings.

Which O-ring material is best for ORFS fittings?

Use 90-durometer NBR for standard hydraulic fluids and typical temperatures. Choose FKM when fluids are more aggressive or continuous temperatures are higher, up to about 204°C.

How can I prevent leaks when installing ORFS fittings?

Inspect the flat faces, use the correct O-ring, keep surfaces clean, and tighten to the manufacturer’s torque spec. Avoid overtightening, which can damage threads or distort the sealing face.
